Manufacturer Part Number: | 3233-2-00-15-00-00-08-0 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Terminals - PC Pin, Single Post Connectors |
Available Quantity: | 11255 Pieces |
Unit Price: | Quote by Email |

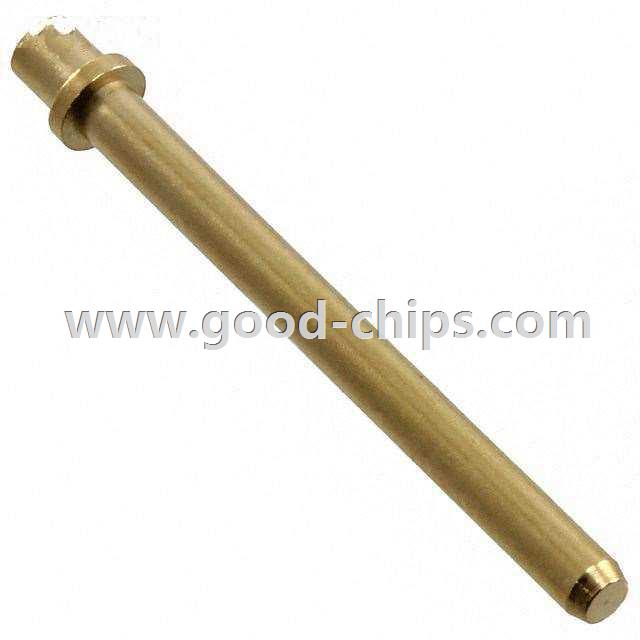

Description: | PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3233-2-00-15-00-00-08-0 Datasheet |
Internal Part Number | 898-3233-2-00-15-00-00-08-0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 3233 Series | |
Category | Connectors, Interconnects | |
Family | Terminals - PC Pin, Single Post Connectors | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 3233 | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | PC Pin | |
Terminal Style | Single End | |
Pin Size - Above Flange | 0.080" (2.03mm) Dia | |
Pin Size - Below Flange | 0.090" (2.29mm) Dia | |
Length Above Flange | 0.900" (22.86mm) | |
Length Below Flange | 0.094" (2.39mm) | |
Length - Overall | 1.019" (25.88mm) | |
Flange Diameter | 0.125" (3.18mm) | |
Mounting Hole Diameter | 0.094" (2.39mm) | |
Mounting Type | Through Hole | |
Termination | Swage | |
Insulation | Non-Insulated | |
Board Thickness | 0.062" (1.57mm) | |
Contact Material | Brass Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3233-2-00-15-00-00-08-0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3233-2-00-15-00-00-08-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 3233-2-00-15-00-00-08-0 is new and unused, you can buy 3233-2-00-15-00-00-08-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3233-2-00-15-00-00-08-0.
