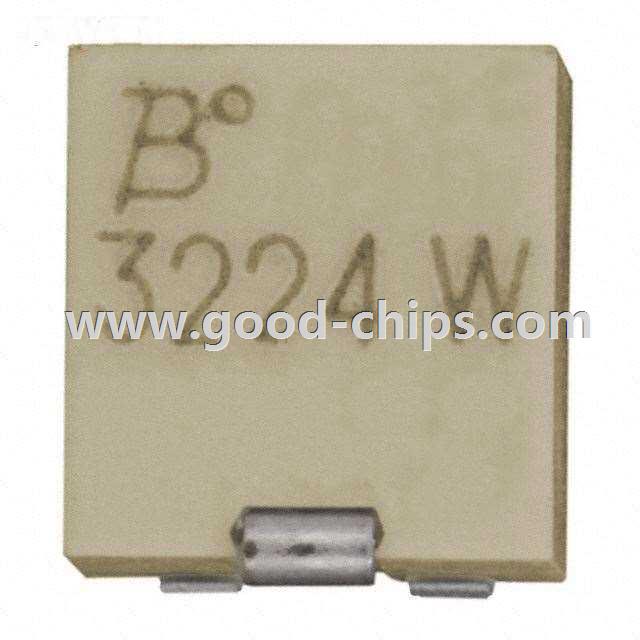

Manufacturer Part Number: | 3224W-1-202E |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Trimmer Potentiometers |
Available Quantity: | 14510 Pieces |
Unit Price: | Quote by Email |
Description: | 2k Ohm 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 12 Turn Top Adjustment |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3224W-1-202E Datasheet |
Internal Part Number | 898-3224W-1-202E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 3224W.stp 3224W.igs | |
PCN Design/Specification | 3224 Model Epoxy Color June/2007 3214, 3224 Series Plastic March/2011 | |
Online Catalog | Trimpot® 3224 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Trimmer Potentiometers | |
Manufacturer | Bourns Inc. | |
Series | Trimpot® 3224 - Sealed | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 2k | |
Power (Watts) | 0.25W, 1/4W | |
Tolerance | ±10% | |
Temperature Coefficient | ±100ppm/°C | |
Number of Turns | 12 | |
Adjustment Type | Top Adjustment | |
Resistive Material | Cermet | |
Mounting Type | Surface Mount | |
Termination Style | J Lead | |
Size / Dimension | Rectangular - 0.189" x 0.138" Face x 0.209" H (4.80mm x 3.50mm x 5.30mm) | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3224W-1-202E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3224W-1-202E is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3224W-1-202E is new and unused, you can buy 3224W-1-202E Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3224W-1-202E.
