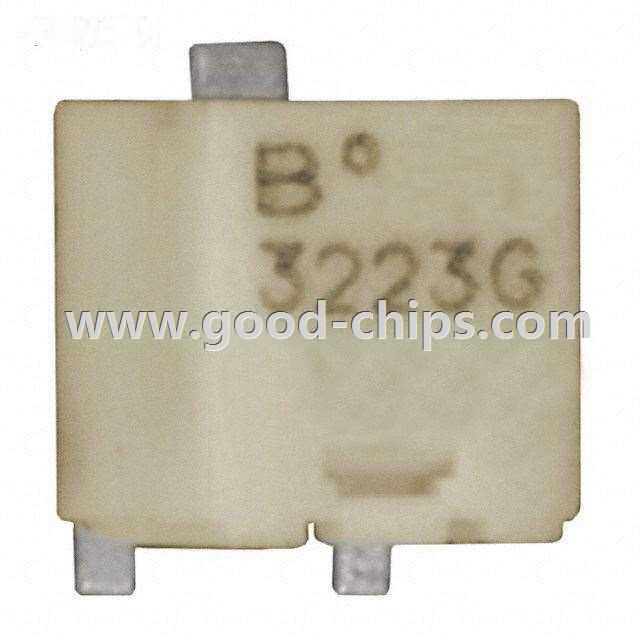

| Manufacturer Part Number: | 3223G-1-202E |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2k Ohm 0.125W, 1/8W Gull Wing Surface Mount Trimmer Potentiometer Cermet 11 Turn Side Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3223G-1-202E Datasheet |
| Internal Part Number | 898-3223G-1-202E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 3223G.stp | |
| PCN Design/Specification | 3223 Model Epoxy Color June/2007 | |
| PCN Assembly/Origin | Facility Transfer Jul/2012 | |
| Online Catalog | Trimpot® 3223 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Bourns Inc. | |
| Series | Trimpot® 3223 - Sealed | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 2k | |
| Power (Watts) | 0.125W, 1/8W | |
| Tolerance | ±20% | |
| Temperature Coefficient | ±100ppm/°C | |
| Number of Turns | 11 | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Cermet | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Size / Dimension | Rectangular - 0.154" x 0.125" Face x 0.154" H (3.90mm x 3.18mm x 3.90mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3223G-1-202E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3223G-1-202E is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3223G-1-202E is new and unused, you can buy 3223G-1-202E Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3223G-1-202E.
