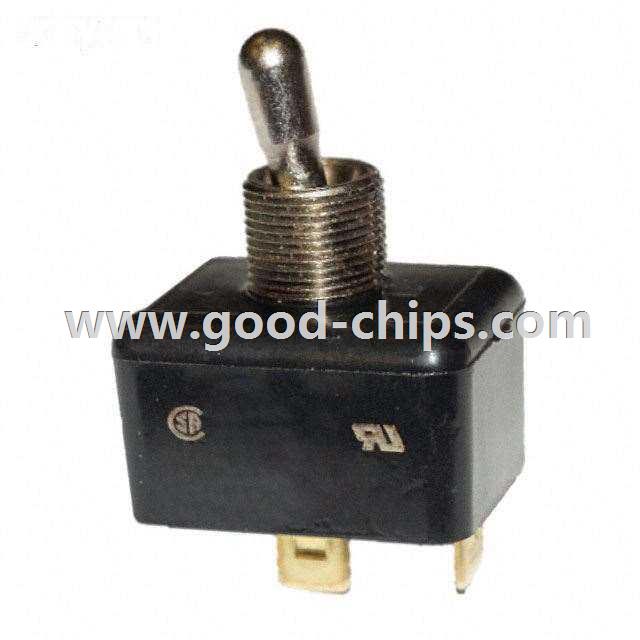

| Manufacturer Part Number: | 3101C |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Toggle Switches |
| Available Quantity: | 9160 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3101C Datasheet |
| Internal Part Number | 898-3101C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 3100 and 3300 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Electroswitch | |
| Series | 3100 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 6A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Standard Round | |
| Actuator Length | 14.22mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Actuator Material | - | |
| Electrical Life | 25,000 Cycles | |
| Operating Temperature | -10°C ~ 65°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3101C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3101C is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of 3101C is new and unused, you can buy 3101C Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3101C.
