Manufacturer Part Number: | 30R-JMCS-G-B-TF(NSA) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 11510 Pieces |
Unit Price: | Quote by Email |

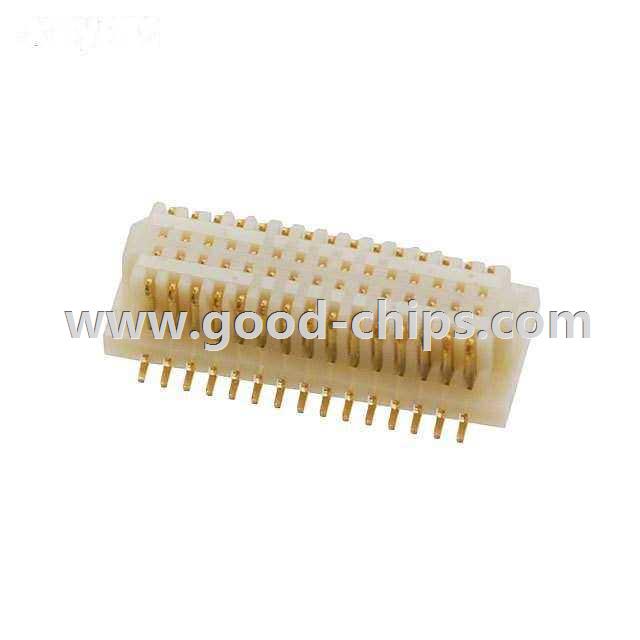

Description: | 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 30R-JMCS-G-B-TF(NSA) Datasheet |
Internal Part Number | 898-30R-JMCS-G-B-TF(NSA) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | JMC Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | JST Sales America Inc. | |
Series | JMC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 30 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Mated Stacking Heights | - | |
Height Above Board | 0.091" (2.30mm) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 30R-JMCS-G-B-TF(NSA) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
30R-JMCS-G-B-TF(NSA) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 30R-JMCS-G-B-TF(NSA) is new and unused, you can buy 30R-JMCS-G-B-TF(NSA) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 30R-JMCS-G-B-TF(NSA).
