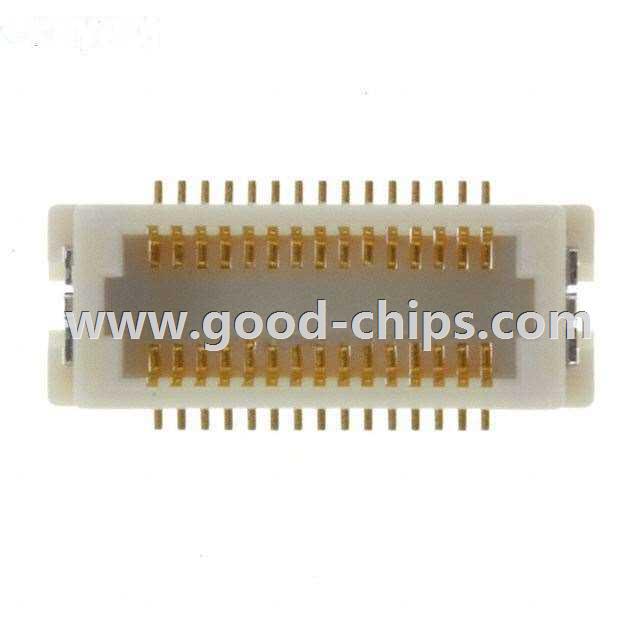

30P5.0-JMDSS-G-1-TF(LF)(SN)

30P5.0-JMDSS-G-1-TF(LF)(SN)
Manufacturer Part Number:30P5.0-JMDSS-G-1-TF(LF)(SN)
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 30P5.0-JMDSS-G-1-TF(LF)(SN) Datasheet
30P5.0-JMDSS-G-1-TF(LF)(SN)´s Parameters
Internal Part Number898-30P5.0-JMDSS-G-1-TF(LF)(SN)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesJMD Connectors
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerJST Sales America Inc.
SeriesJMD
PackagingTape & Reel (TR)
Part StatusActive
Connector TypePlug, Outer Shroud Contacts
Number of Positions30
Pitch0.020" (0.50mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness-
Mated Stacking Heights5mm
Height Above Board-
Standard Package 1,500
Weight0.001 KG
ApplicationEmail for details
Replacement Part30P5.0-JMDSS-G-1-TF(LF)(SN)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

30P5.0-JMDSS-G-1-TF(LF)(SN) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 30P5.0-JMDSS-G-1-TF(LF)(SN) is new and unused, you can buy 30P5.0-JMDSS-G-1-TF(LF)(SN) JST Sales America Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 30P5.0-JMDSS-G-1-TF(LF)(SN).
