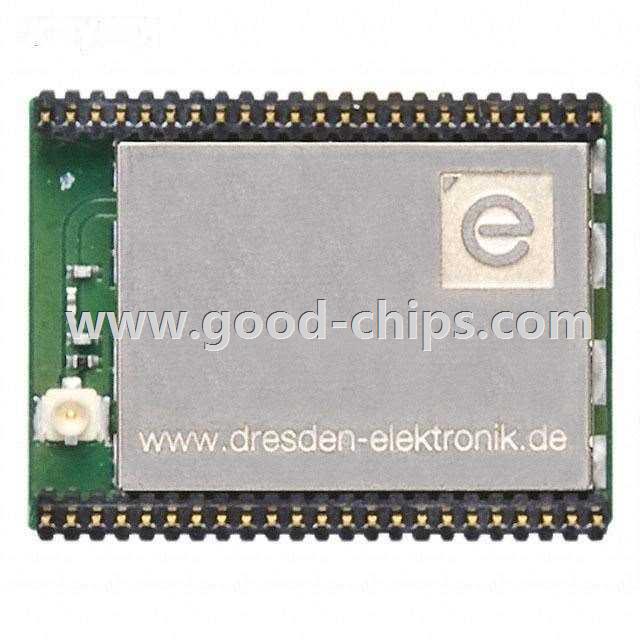

| Manufacturer Part Number: | 30974 |
|---|---|
| Manufacturer: | Dresden Elektronik |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE 802.15.4 U.FL ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 30974 Datasheet |
| Internal Part Number | 898-30974 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Online Catalog | deRFarm7 Radio Modules | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Dresden Elektronik | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | 802.15.4 | |
| Protocol | 6LoWPAN, Zigbee® | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 1Mbps | |
| Power - Output | 10dBm | |
| Sensitivity | -110dBm | |
| Serial Interfaces | I²C, JTAG, SPI, UART, USB | |
| Antenna Type | Not Included, U.FL | |
| Memory Size | - | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Current - Receiving | 45mA | |
| Current - Transmitting | 45mA | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 46-DIP Module (0.800", 20.32mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 30974 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
30974 is in stock for immediate shipping now. We are the distributor of Dresden Elektronik all series components. The condition of 30974 is new and unused, you can buy 30974 Dresden Elektronik with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 30974.
