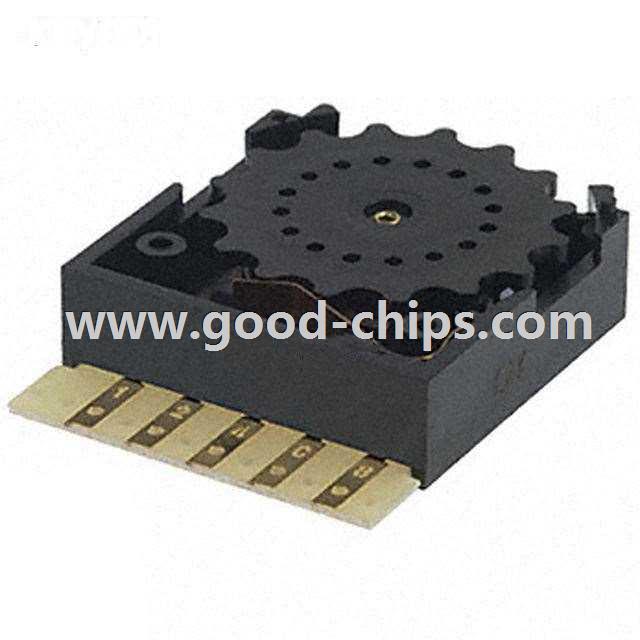

| Manufacturer Part Number: | 307119000 |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Thumbwheel Switches |
| Available Quantity: | 9074 Pieces |
| Unit Price: | Quote by Email |
| Description: | Thumbwheel Switch Hexadecimal 0.1A @ 120VAC/28VDC Panel Mount, Screw |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 307119000 Datasheet |
| Internal Part Number | 898-307119000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| PCN Assembly/Origin | Series Transfer 26/Nov/2012 | |
| Online Catalog | 3 Series | |
| Category | Switches | |
| Family | Thumbwheel Switches | |
| Manufacturer | C&K Components | |
| Series | 3 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Output Code | Hexadecimal | |
| Read Out | 0 ~ 9, A ~ F | |
| Number of Sections | 1 | |
| Display Characters - Height | - | |
| Actuator Type | Thumbwheel | |
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC | |
| Contact Material | Copper Alloy | |
| Contact Finish | - | |
| Mounting Type | Panel Mount, Screw | |
| Termination Style | Card Edge/Solder Pad | |
| End Caps | Sold Separately | |
| Section Width | 0.350" (8.89mm) | |
| Panel Cutout Dimensions | - | |
| Features | - | |
| Depth Behind Flange | 36.68mm | |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | |
| Color | Black | |
| Operating Temperature | -40°C ~ 65°C | |
| Electrical Life | 100,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 307119000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
307119000 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of 307119000 is new and unused, you can buy 307119000 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 307119000.
