Manufacturer Part Number: | 3059J-1-155M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Trimmer Potentiometers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

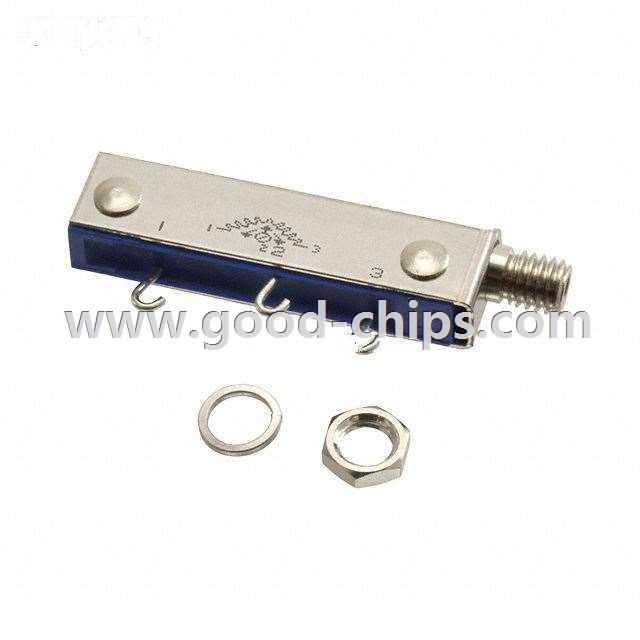

Description: | 1.5M Ohm 1W Solder Hook Panel Mount Trimmer Potentiometer Cermet 22 Turn Side Adjustment |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3059J-1-155M Datasheet |
Internal Part Number | 898-3059J-1-155M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 3059J.stp 3059J.igs | |
PCN Assembly/Origin | Facility Transfer Jul/2012 | |
Category | Potentiometers, Variable Resistors | |
Family | Trimmer Potentiometers | |
Manufacturer | Bourns Inc. | |
Series | Trimpot® 3059 - Sealed | |
Packaging | Bulk | |
Part Status | Active | |
Resistance (Ohms) | 1.5M | |
Power (Watts) | 1W | |
Tolerance | ±10% | |
Temperature Coefficient | ±100ppm/°C | |
Number of Turns | 22 | |
Adjustment Type | Side Adjustment | |
Resistive Material | Cermet | |
Mounting Type | Panel Mount | |
Termination Style | Solder Hook | |
Size / Dimension | Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm) | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3059J-1-155M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3059J-1-155M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3059J-1-155M is new and unused, you can buy 3059J-1-155M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3059J-1-155M.
