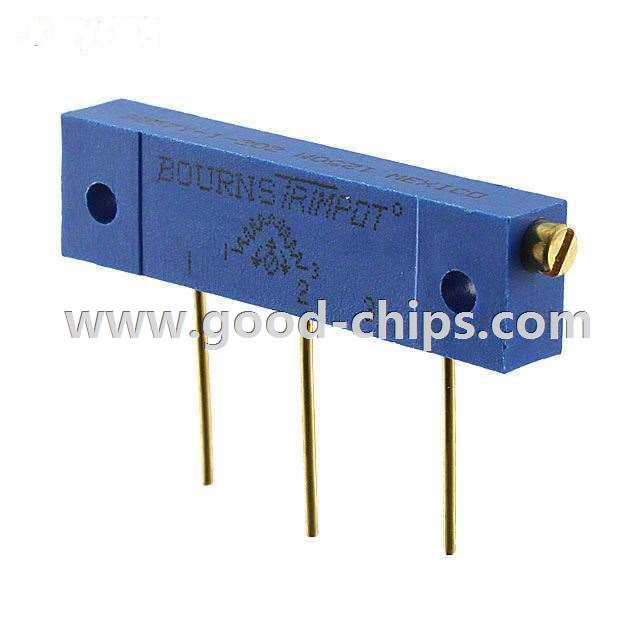

| Manufacturer Part Number: | 3057Y-1-503 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9075 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50k Ohm 1W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 22 Turn Side Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3057Y-1-503 Datasheet |
| Internal Part Number | 898-3057Y-1-503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 3057Y.stp 3057Y.igs | |
| Online Catalog | Trimpot® 3057 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Bourns Inc. | |
| Series | Trimpot® 3057 - Sealed | |
| Packaging | Tube | |
| Part Status | Active | |
| Resistance (Ohms) | 50k | |
| Power (Watts) | 1W | |
| Tolerance | ±5% | |
| Temperature Coefficient | ±50ppm/°C | |
| Number of Turns | 22 | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Wirewound | |
| Mounting Type | Chassis Mount | |
| Termination Style | PC Pins | |
| Size / Dimension | Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm) | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3057Y-1-503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3057Y-1-503 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3057Y-1-503 is new and unused, you can buy 3057Y-1-503 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3057Y-1-503.
