Manufacturer Part Number: | 305170 |
---|---|
Manufacturer: | American Electrical Inc. |
Product Category: | Terminal Blocks - Din Rail, Channel |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

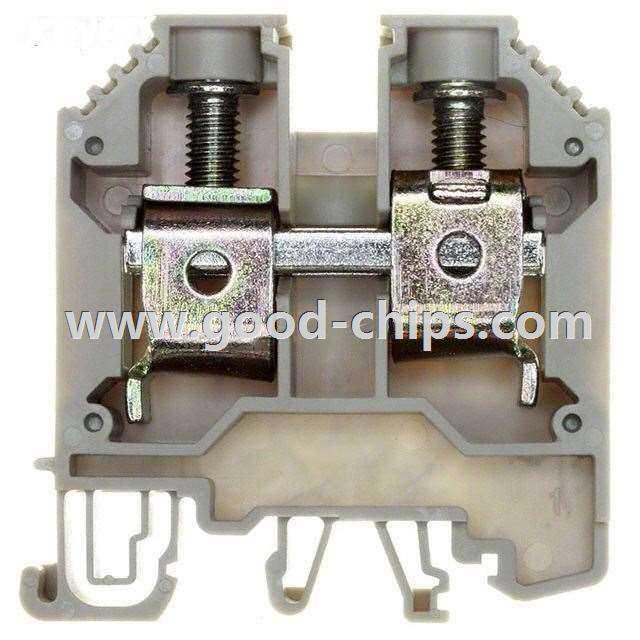

Description: | Terminal Block Connector 2 Position Feed Through Beige 2-10 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 305170 Datasheet |
Internal Part Number | 898-305170 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Din Rail, Channel | |
Manufacturer | American Electrical Inc. | |
Series | PEK | |
Part Status | Active | |
Type | Feed Through | |
Disconnect Type | - | |
Number of Positions | 2 | |
Number of Levels | 1 | |
Terminal - Width | 16.0mm | |
Termination Style | Screw | |
Current - IEC | 125A | |
Voltage - IEC | 750V | |
Current - UL | 115A | |
Voltage - UL | 600V | |
Wire Gauge or Range - AWG | 2-10 AWG | |
Wire Gauge or Range - mm² | 6-16mm² | |
Features | - | |
Color | Beige | |
Fuse Type | - | |
Material - Insulation | Polyamide (PA66), Nylon 6/6 | |
Material Flammability Rating | UL94 V-2 | |
Stripping Length | 18mm | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 305170 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
305170 is in stock for immediate shipping now. We are the distributor of American Electrical Inc. all series components. The condition of 305170 is new and unused, you can buy 305170 American Electrical Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 305170.
