Manufacturer Part Number: | 3020-26-0200-00 |
---|---|
Manufacturer: | CNC Tech |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9721 Pieces |
Unit Price: | Quote by Email |

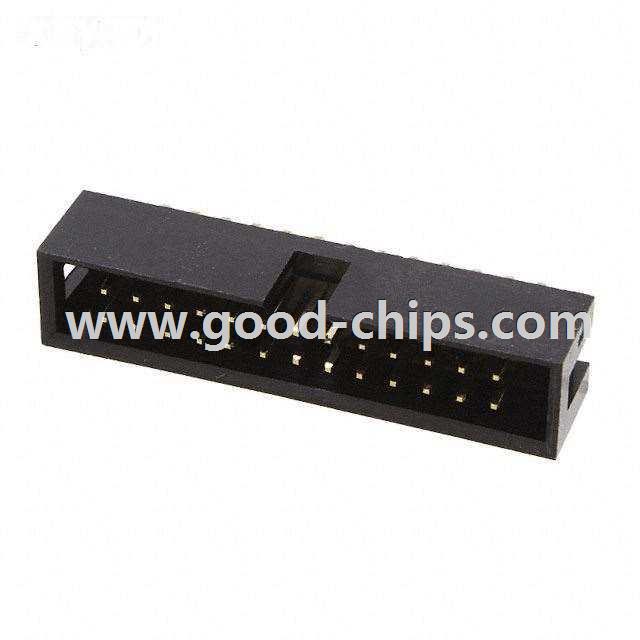

Description: | 26 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3020-26-0200-00 Datasheet |
Internal Part Number | 898-3020-26-0200-00 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 3020 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | CNC Tech | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 26 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Contact Mating Length | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Color | - | |
Standard Package | 720 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3020-26-0200-00 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3020-26-0200-00 is in stock for immediate shipping now. We are the distributor of CNC Tech all series components. The condition of 3020-26-0200-00 is new and unused, you can buy 3020-26-0200-00 CNC Tech with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3020-26-0200-00.
