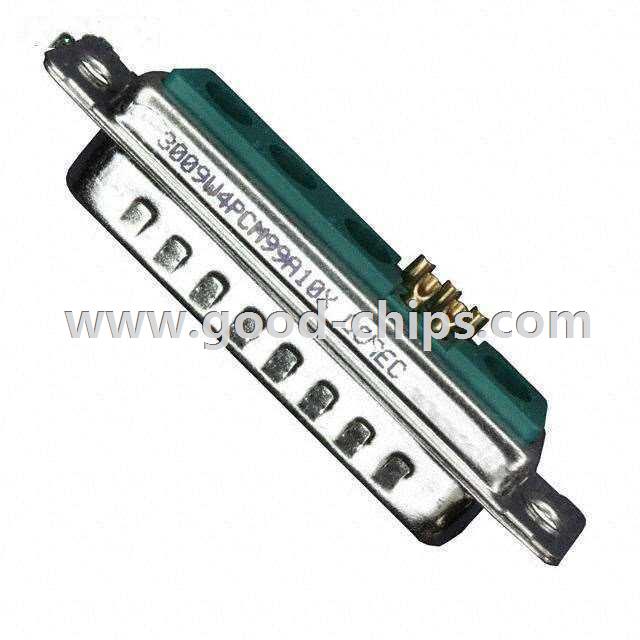

Manufacturer Part Number: | 3009W4PCM99A10X |
---|---|
Manufacturer: | Conec |
Product Category: | D-Sub Connectors |
Available Quantity: | 9266 Pieces |
Unit Price: | Quote by Email |
Description: | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3009W4PCM99A10X Datasheet |
Internal Part Number | 898-3009W4PCM99A10X | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS/Reach Cert of Compliance | |
Featured Product | Conec – Combination D-SUB Connectors | |
Online Catalog | 30xxWx Series - Conec | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Conec | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub, Combo | |
Connector Type | Plug, Male Pins | |
Number of Positions | 9 (5 + 4 Coax or Power) | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) - 9W4 | |
Contact Type | Signal and Coax or Power (Not Included) | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 5A | |
Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Color | Green | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3009W4PCM99A10X | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3009W4PCM99A10X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 3009W4PCM99A10X is new and unused, you can buy 3009W4PCM99A10X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3009W4PCM99A10X.
