Manufacturer Part Number: | 3005P-1-502 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Trimmer Potentiometers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

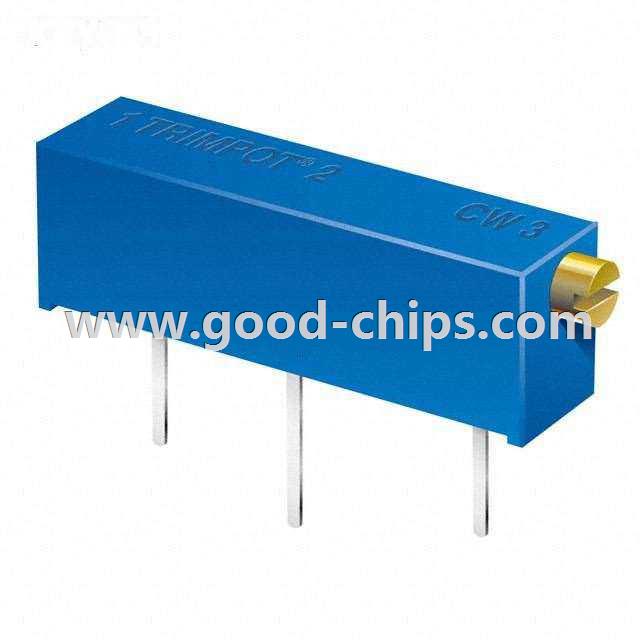

Description: | 5k Ohm 1W PC Pins Through Hole Trimmer Potentiometer Wirewound 20 Turn Side Adjustment |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3005P-1-502 Datasheet |
Internal Part Number | 898-3005P-1-502 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 3005P.stp 3005P.igs | |
Online Catalog | Trimpot® 3005 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Trimmer Potentiometers | |
Manufacturer | Bourns Inc. | |
Series | Trimpot® 3005 - Sealed | |
Packaging | Tube | |
Part Status | Active | |
Resistance (Ohms) | 5k | |
Power (Watts) | 1W | |
Tolerance | ±10% | |
Temperature Coefficient | ±50ppm/°C | |
Number of Turns | 20 | |
Adjustment Type | Side Adjustment | |
Resistive Material | Wirewound | |
Mounting Type | Through Hole | |
Termination Style | PC Pins | |
Size / Dimension | Rectangular - 0.310" x 0.160" Face x 0.749" L (7.87mm x 4.06mm x 19.03mm) | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3005P-1-502 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3005P-1-502 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3005P-1-502 is new and unused, you can buy 3005P-1-502 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3005P-1-502.
