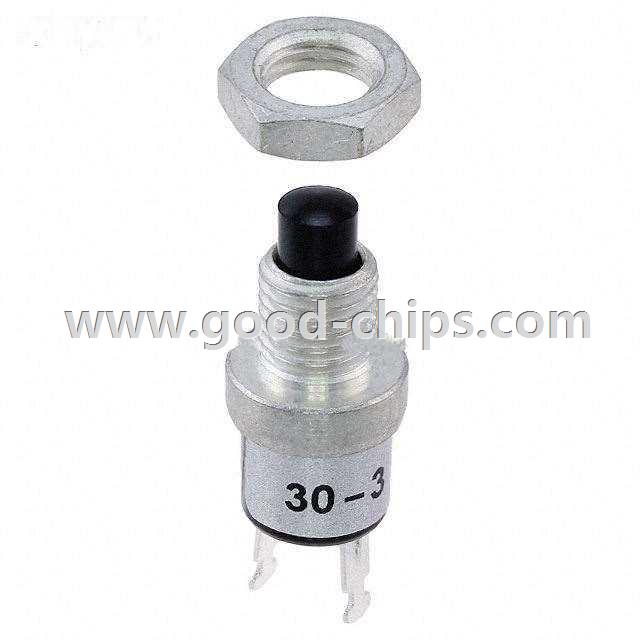

Manufacturer Part Number: | 30-3 |
---|---|
Manufacturer: | Grayhill Inc. |
Product Category: | Pushbutton Switches |
Available Quantity: | 14724 Pieces |
Unit Price: | Quote by Email |
Description: | Pushbutton Switch SPST-NO Standard Panel Mount, Rear |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 30-3 Datasheet |
Internal Part Number | 898-30-3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | Compliance Status by Product Type | |
PCN Other | Multiple Devices Plating Material 30/Jan/2015 | |
Online Catalog | 30 Series | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | Grayhill Inc. | |
Series | 30 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Standard | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 1A (AC) | |
Voltage Rating - AC | 115V | |
Voltage Rating - DC | - | |
Actuator Type | Round, Plunger | |
Color - Actuator/Cap | Black | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Rear | |
Termination Style | Solder Lug | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | Circular - 6.75mm Dia | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 1,000,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 30-3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
30-3 is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 30-3 is new and unused, you can buy 30-3 Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 30-3.
