| Manufacturer Part Number: | 2SK3748-1E |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 1500V 4A TO-2PF-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2SK3748-1E Datasheet |
| Internal Part Number | 898-2SK3748-1E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1500V (1.5kV) | |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | |
| Rds On (Max) @ Id, Vgs | 7 Ohm @ 2A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 80nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 790pF @ 30V | |
| Power - Max | 3W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | SC-94 | |

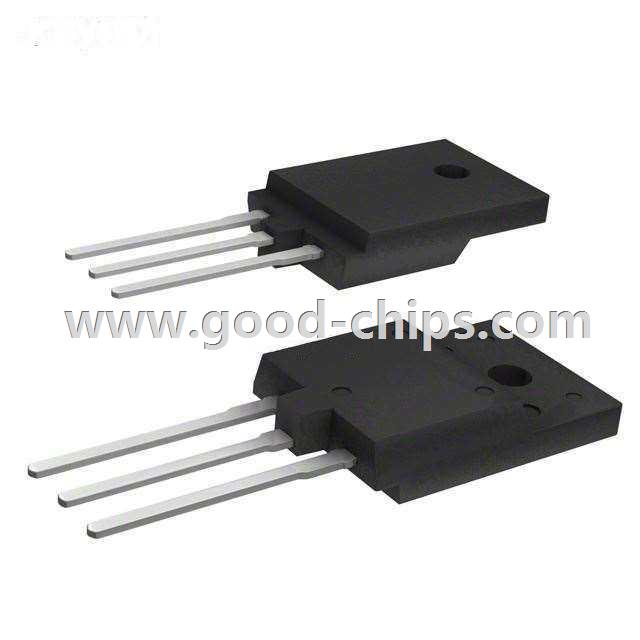

| Supplier Device Package | TO-3PF-3 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2SK3748-1E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2SK3748-1E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 2SK3748-1E is new and unused, you can buy 2SK3748-1E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SK3748-1E.
