| Manufacturer Part Number: | 2SK1317-E |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 1500V 2.5A TO-3P |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2SK1317-E Datasheet |
| Internal Part Number | 898-2SK1317-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Renesas Electronics America | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1500V (1.5kV) | |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) | |
| Rds On (Max) @ Id, Vgs | 12 Ohm @ 2A, 15V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 990pF @ 10V | |
| Power - Max | 100W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Through Hole | |

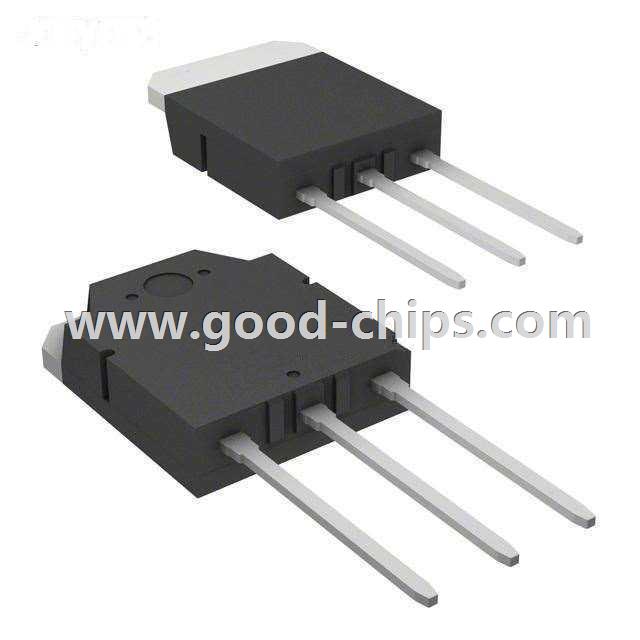

| Package / Case | TO-3P-3, SC-65-3 | |
| Supplier Device Package | TO-3P | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2SK1317-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2SK1317-E is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of 2SK1317-E is new and unused, you can buy 2SK1317-E Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SK1317-E.
