2SD2096T114E

2SD2096T114E
Manufacturer Part Number:2SD2096T114E
Manufacturer:
Product Category:Transistors - Bipolar (BJT) - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:TRANS NPN 60V 3A HRT/TO-220FP
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 2SD2096T114E Datasheet
2SD2096T114E´s Parameters
Internal Part Number898-2SD2096T114E
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryDiscrete Semiconductor Products
FamilyTransistors - Bipolar (BJT) - Single
ManufacturerRohm Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3A
Voltage - Collector Emitter Breakdown (Max)60V
Vce Saturation (Max) @ Ib, Ic1V @ 200mA, 2A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 500mA, 5V
Power - Max1.8W
Frequency - Transition8MHz
Mounting TypeThrough Hole

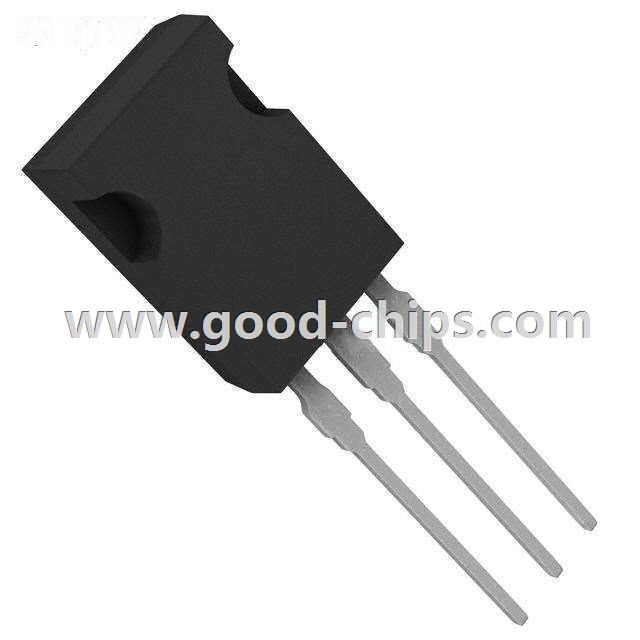

Package / CaseHRT
Supplier Device PackageHRT
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part2SD2096T114E
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

2SD2096T114E is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of 2SD2096T114E is new and unused, you can buy 2SD2096T114E Rohm Semiconductor with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 2SD2096T114E.
