, SC-63.jpg)
| Manufacturer Part Number: | 2SD12950RL |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 40V 1.5A U-G2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2SD12950RL Datasheet |
| Internal Part Number | 898-2SD12950RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 1.5A | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 150mA, 1.5A | |
| Current - Collector Cutoff (Max) | 100µA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 1A, 5V | |
| Power - Max | 10W | |
| Frequency - Transition | 150MHz | |
| Mounting Type | Surface Mount | |

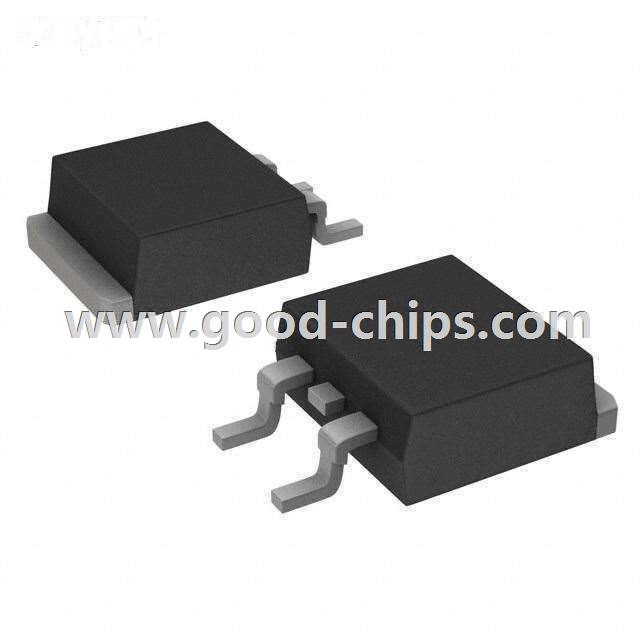

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Supplier Device Package | U-G2 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2SD12950RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2SD12950RL is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of 2SD12950RL is new and unused, you can buy 2SD12950RL Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SD12950RL.
