2SC5231A-9-TL-E

2SC5231A-9-TL-E
Manufacturer Part Number:2SC5231A-9-TL-E
Manufacturer:
Product Category:Transistors - Bipolar (BJT) - RF
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:RF Transistor NPN 10V 70mA 7GHz 100mW Surface Mount SMCP
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 2SC5231A-9-TL-E Datasheet
2SC5231A-9-TL-E´s Parameters
Internal Part Number898-2SC5231A-9-TL-E
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryDiscrete Semiconductor Products
FamilyTransistors - Bipolar (BJT) - RF
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition7GHz
Noise Figure (dB Typ @ f)1dB @ 1GHz
Gain12dB ~ 8.5dB @ 1GHz
Power - Max100mW
DC Current Gain (hFE) (Min) @ Ic, Vce135 @ 20mA, 5V
Current - Collector (Ic) (Max)70mA
Mounting TypeSurface Mount

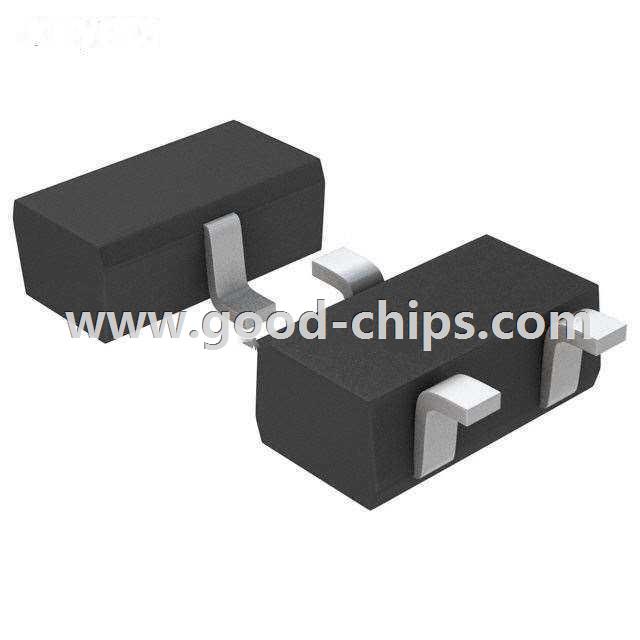

Package / Case3-SMD, Gull Wing
Supplier Device PackageSMCP
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part2SC5231A-9-TL-E
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

2SC5231A-9-TL-E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 2SC5231A-9-TL-E is new and unused, you can buy 2SC5231A-9-TL-E ON Semiconductor with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 2SC5231A-9-TL-E.
