Manufacturer Part Number: | 2SA2094TLQ |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | Transistors - Bipolar (BJT) - Single |
Available Quantity: | 15010 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS PNP 60V 2A TSMT3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2SA2094TLQ Datasheet |
Internal Part Number | 898-2SA2094TLQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | TSMT Package Updates 24/Dec/2014 | |
Online Catalog | PNP Transistors | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Single | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Not For New Designs | |
Transistor Type | PNP | |
Current - Collector (Ic) (Max) | 2A | |
Voltage - Collector Emitter Breakdown (Max) | 60V | |
Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A | |
Current - Collector Cutoff (Max) | 1µA (ICBO) | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 100mA, 2V | |
Power - Max | 500mW | |
Frequency - Transition | 300MHz | |
Mounting Type | Surface Mount | |
Package / Case | SC-96 | |

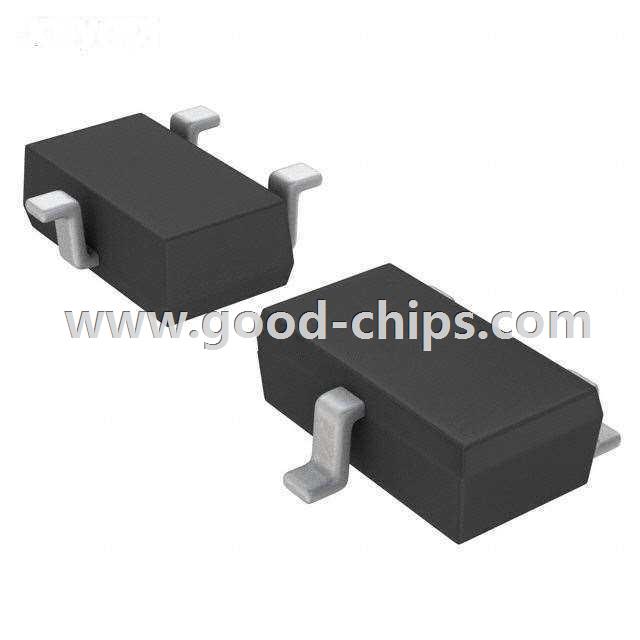

Supplier Device Package | TSMT3 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2SA2094TLQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2SA2094TLQ is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of 2SA2094TLQ is new and unused, you can buy 2SA2094TLQ Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SA2094TLQ.
