Manufacturer Part Number: | 2N6661 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9325 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 90V 350MA 3TO-39 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2N6661 Datasheet |
Internal Part Number | 898-2N6661 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | New DeviceDoc 30/Mar/2016 | |
PCN Assembly/Origin | 3L TO-39 Qualification Assembly Site Update 22/Aug/2014 Additional Fabrication Site 03/Sep/2014 Fab Site Addition 14/Aug/2014 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 90V | |
Current - Continuous Drain (Id) @ 25°C | 350mA (Tj) | |
Rds On (Max) @ Id, Vgs | 4 Ohm @ 1A, 10V | |
Vgs(th) (Max) @ Id | 2V @ 1mA | |
Gate Charge (Qg) @ Vgs | - | |
Input Capacitance (Ciss) @ Vds | 50pF @ 24V | |
Power - Max | 6.25W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |

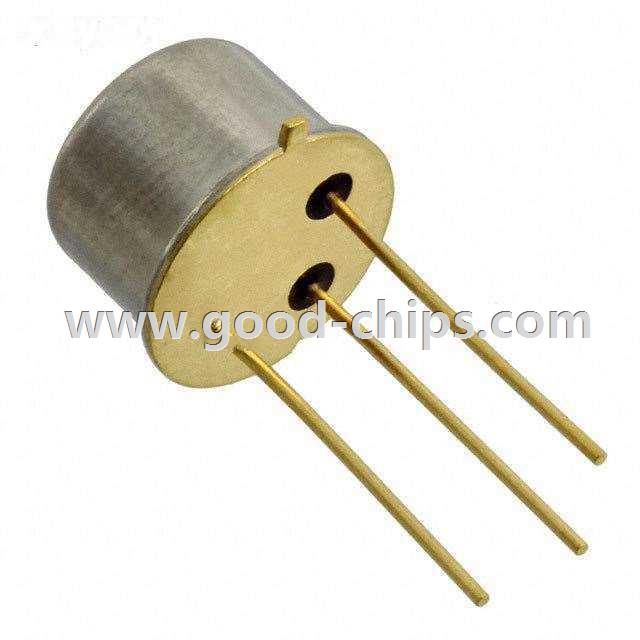

Package / Case | TO-205AD, TO-39-3 Metal Can | |
Supplier Device Package | TO-39 | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2N6661 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2N6661 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of 2N6661 is new and unused, you can buy 2N6661 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N6661.
