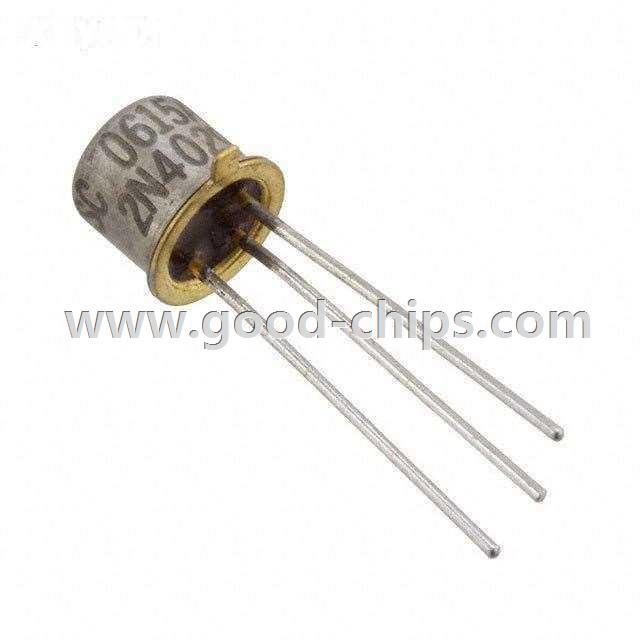

Manufacturer Part Number: | 2N4029 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - Bipolar (BJT) - Single |
Available Quantity: | 9042 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS PNP 80V 1A TO-18 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2N4029 Datasheet |
Internal Part Number | 898-2N4029 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PNP Transistors | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Single | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Transistor Type | PNP | |
Current - Collector (Ic) (Max) | 1A | |
Voltage - Collector Emitter Breakdown (Max) | 80V | |
Vce Saturation (Max) @ Ib, Ic | 1V @ 100mA, 1A | |
Current - Collector Cutoff (Max) | 10µA (ICBO) | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V | |
Power - Max | 500mW | |
Frequency - Transition | - | |
Mounting Type | Through Hole | |
Package / Case | TO-206AA, TO-18-3 Metal Can | |
Supplier Device Package | TO-18 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2N4029 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2N4029 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 2N4029 is new and unused, you can buy 2N4029 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N4029.
