| Manufacturer Part Number: | 2N3791 |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PNP 60V 10A TO-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2N3791 Datasheet |
| Internal Part Number | 898-2N3791 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| Online Catalog | PNP Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Transistor Type | PNP | |
| Current - Collector (Ic) (Max) | 10A | |
| Voltage - Collector Emitter Breakdown (Max) | 60V | |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 1A, 2V | |
| Power - Max | 150W | |
| Frequency - Transition | 4MHz | |
| Mounting Type | Through Hole | |

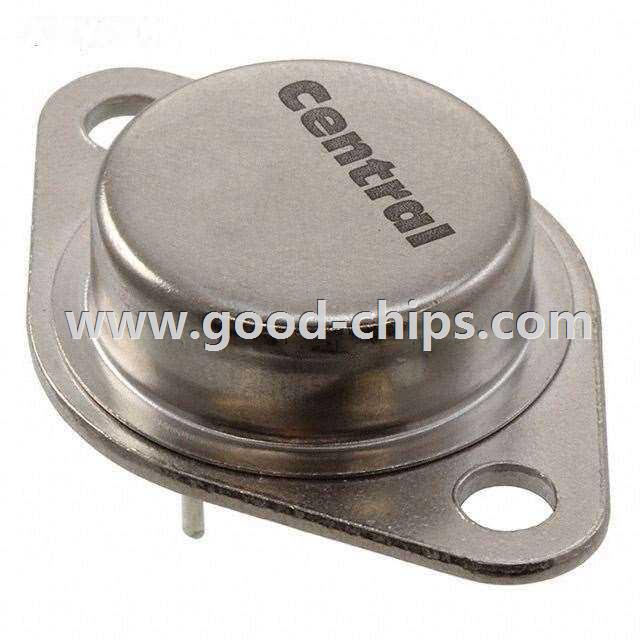

| Package / Case | TO-204AA, TO-3 | |
| Supplier Device Package | TO-3 | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2N3791 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2N3791 is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of 2N3791 is new and unused, you can buy 2N3791 Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N3791.
