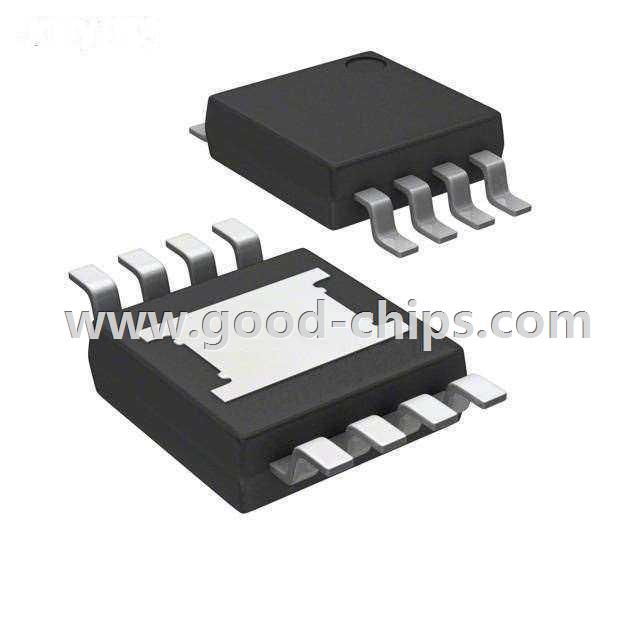

 Exposed Pad.jpg)
| Manufacturer Part Number: | 2EDN7524RXUMA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC GATE DRVR 8TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2EDN7524RXUMA1 Datasheet |
| Internal Part Number | 898-2EDN7524RXUMA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Low-Side | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | EiceDriver™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Driven Configuration | Low-Side | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 4.5 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 1.2V, 1.9V | |
| Current - Peak Output (Source, Sink) | 5A, 5A | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | - | |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | |
| Supplier Device Package | PG-TSSLP-8 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2EDN7524RXUMA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2EDN7524RXUMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of 2EDN7524RXUMA1 is new and unused, you can buy 2EDN7524RXUMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2EDN7524RXUMA1.
