| Manufacturer Part Number: | 299-43-324-11-001000 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9122 Pieces |
| Unit Price: | Quote by Email |

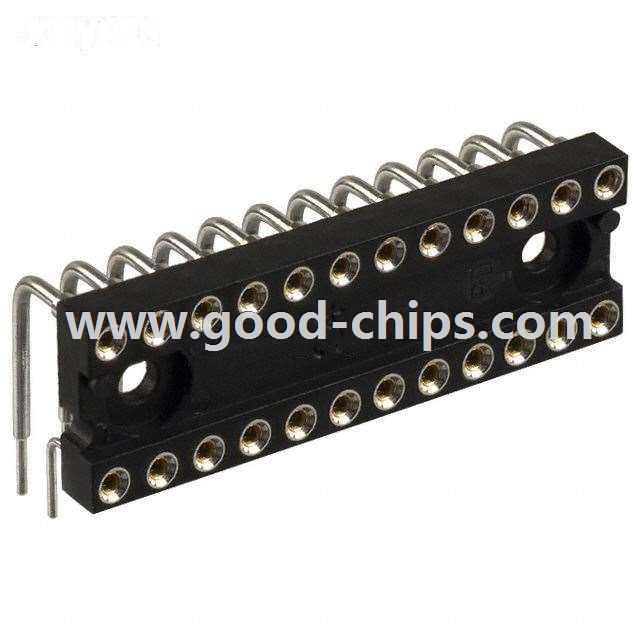

| Description: | CONN IC DIP SOCKET 24POS GOLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 299-43-324-11-001000 Datasheet |
| Internal Part Number | 898-299-43-324-11-001000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Dual-In-Line Sockets Right Angle Mount | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 299 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | DIP, 0.3" (7.62mm) Row Spacing | |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | |
| Pitch - Mating | 0.100" (2.54mm) | |
| Contact Finish - Mating | Gold | |
| Contact Finish Thickness - Mating | 30µin (0.76µm) | |
| Contact Material - Mating | Beryllium Copper | |
| Mounting Type | Through Hole, Right Angle, Horizontal | |
| Features | Closed Frame | |
| Termination | Solder | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | Tin | |
| Contact Finish Thickness - Post | 200µin (5.08µm) | |
| Contact Material - Post | Brass Alloy | |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | |
| Operating Temperature | -55°C ~ 125°C | |
| Termination Post Length | 0.126" (3.20mm) | |
| Material Flammability Rating | - | |
| Current Rating | 3A | |
| Contact Resistance | - | |
| Standard Package | 16 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 299-43-324-11-001000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
299-43-324-11-001000 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 299-43-324-11-001000 is new and unused, you can buy 299-43-324-11-001000 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 299-43-324-11-001000.
