Manufacturer Part Number: | 296XD253B1N |
---|---|
Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
Product Category: | Rotary Potentiometers, Rheostats |
Available Quantity: | 9751 Pieces |
Unit Price: | Quote by Email |

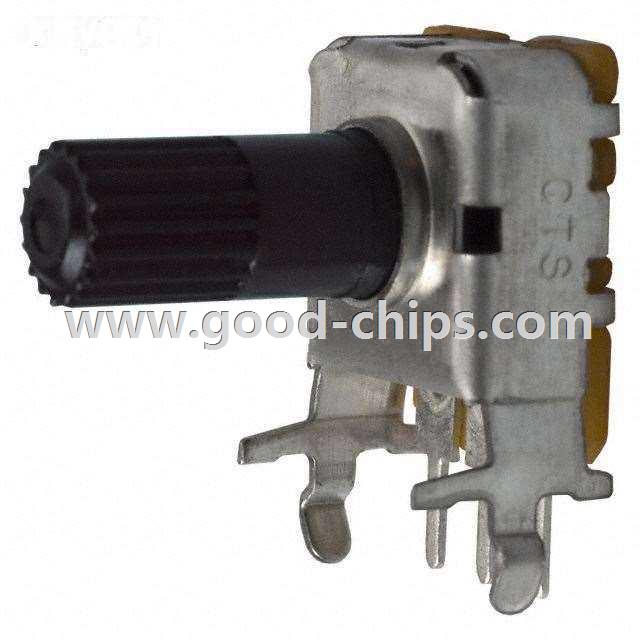

Description: | 25k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.15W PC Pins, Board Locks |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 296XD253B1N Datasheet |
Internal Part Number | 898-296XD253B1N | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 296 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Rotary Potentiometers, Rheostats | |
Manufacturer | CTS Electrocomponents | |
Series | 296 | |
Packaging | Bulk | |
Part Status | Active | |
Taper | Linear | |
Resistance (Ohms) | 25k | |
Tolerance | ±20% | |
Number of Gangs | 1 | |
Built in Switch | None | |
Power (Watts) | 0.15W | |
Temperature Coefficient | - | |
Number of Turns | 1 | |
Rotation | 300° | |
Adjustment Type | Side Adjustment | |
Resistive Material | Carbon | |
Termination Style | PC Pins, Board Locks | |
Actuator Type | Knurled | |
Actuator Length | 0.539" (13.70mm) | |
Actuator Diameter | 0.236" (6.00mm) | |
Bushing Thread | - | |
Mounting Type | Through Hole, Snap In | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 296XD253B1N | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
296XD253B1N is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 296XD253B1N is new and unused, you can buy 296XD253B1N Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 296XD253B1N.
