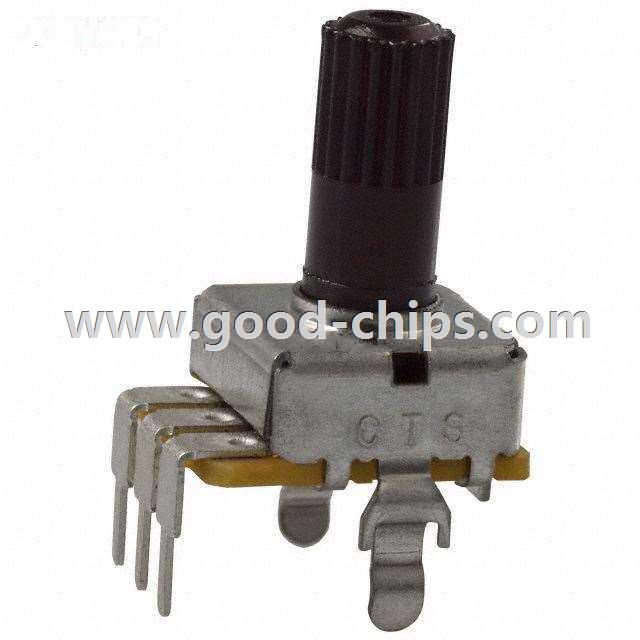

| Manufacturer Part Number: | 296UD503B1N |
|---|---|
| Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
| Product Category: | Rotary Potentiometers, Rheostats |
| Available Quantity: | 11395 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer None 1 Turn Carbon 0.15W PC Pins, Board Locks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 296UD503B1N Datasheet |
| Internal Part Number | 898-296UD503B1N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 296 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Rotary Potentiometers, Rheostats | |
| Manufacturer | CTS Electrocomponents | |
| Series | 296 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Taper | Linear | |
| Resistance (Ohms) | 50k | |
| Tolerance | ±20% | |
| Number of Gangs | 1 | |
| Built in Switch | None | |
| Power (Watts) | 0.15W | |
| Temperature Coefficient | - | |
| Number of Turns | 1 | |
| Rotation | 300° | |
| Adjustment Type | Top Adjustment | |
| Resistive Material | Carbon | |
| Termination Style | PC Pins, Board Locks | |
| Actuator Type | Knurled | |
| Actuator Length | 0.539" (13.70mm) | |
| Actuator Diameter | 0.236" (6.00mm) | |
| Bushing Thread | - | |
| Mounting Type | Through Hole, Snap In | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 296UD503B1N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
296UD503B1N is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 296UD503B1N is new and unused, you can buy 296UD503B1N Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 296UD503B1N.
