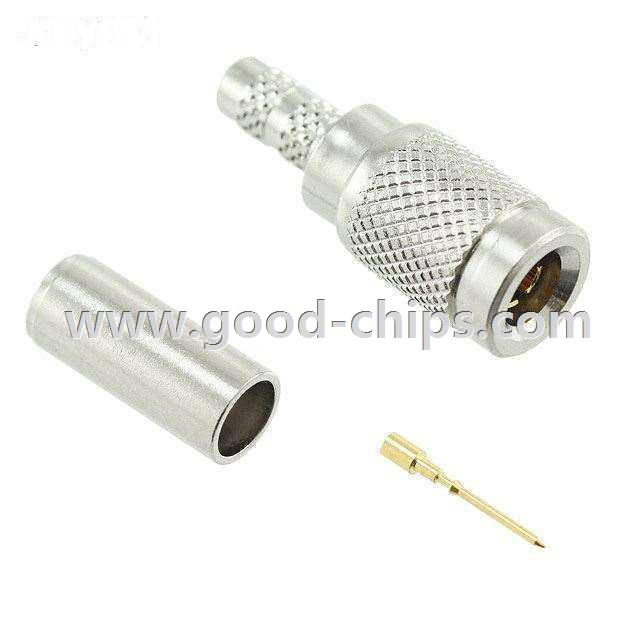

282118-75

282118-75
Manufacturer Part Number:282118-75
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9115 Pieces
Unit Price:Quote by Email
Description:1.0/2.3 Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 282118-75 Datasheet
282118-75´s Parameters
Internal Part Number898-282118-75
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileHow to Crimp a BNC 3 Piece Crimp Coaxial Connector on RG-59 Cable
Featured Product75Ω 1.0/2.3 DIN Plugs / 1.0/2.3 DIN Receptacles
Online Catalog 1.0/2.3, 282 Series
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Connector Style1.0/2.3
Connector TypePlug, Male Pin
Contact TerminationCrimp
Shield TerminationCrimp
Impedance75 Ohm
Mounting TypeFree Hanging (In-Line)
Cable GroupAT&T 735, 735A, Belden 735A1
Fastening TypeSnap-On
Frequency - Max3GHz
Features-
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBeryllium Copper; Brass
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating250V
Operating Temperature-65°C ~ 165°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part282118-75
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

282118-75 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 282118-75 is new and unused, you can buy 282118-75 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 282118-75.
