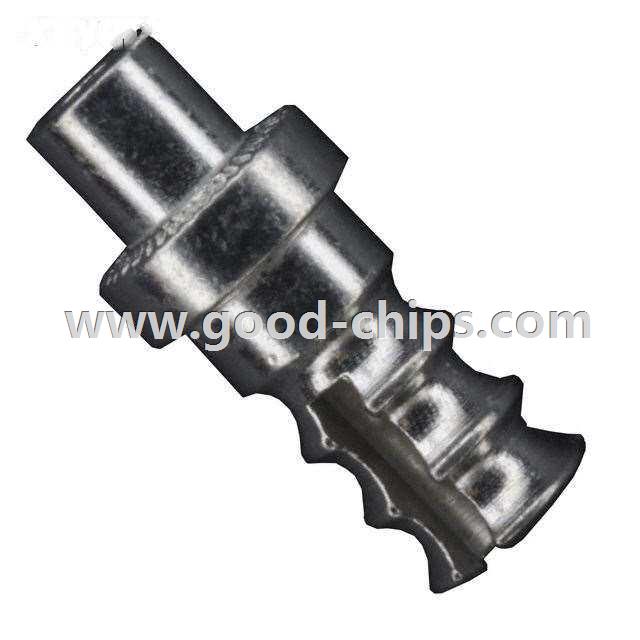

Manufacturer Part Number: | 2808-2-01-01-00-00-07-0 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Terminals - PC Pin, Single Post Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | PC Pin Terminal Connector Through Hole Tin-Lead 0.141" (3.58mm) Dia |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2808-2-01-01-00-00-07-0 Datasheet |
Internal Part Number | 898-2808-2-01-01-00-00-07-0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Terminals - PC Pin, Single Post Connectors | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 2808 | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | PC Pin | |
Terminal Style | Single End, Slotted | |
Pin Size - Above Flange | 0.141" (3.58mm) Dia | |
Pin Size - Below Flange | 0.112" (2.84mm) Dia | |
Length Above Flange | 0.266" (6.76mm) | |
Length Below Flange | 0.105" (2.67mm) | |
Length - Overall | 0.433" (11.00mm) | |
Flange Diameter | 0.188" (4.78mm) | |
Mounting Hole Diameter | 0.116" (2.95mm) | |
Mounting Type | Through Hole | |
Termination | Swage, Knurled | |
Insulation | Non-Insulated | |
Board Thickness | 0.062" (1.57mm) | |
Contact Material | Brass Alloy | |
Contact Finish | Tin-Lead | |
Contact Finish Thickness | 200µin (5.08µm) | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2808-2-01-01-00-00-07-0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2808-2-01-01-00-00-07-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 2808-2-01-01-00-00-07-0 is new and unused, you can buy 2808-2-01-01-00-00-07-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2808-2-01-01-00-00-07-0.
