Manufacturer Part Number: | 28-536-11 |
---|---|
Manufacturer: | Aries Electronics |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

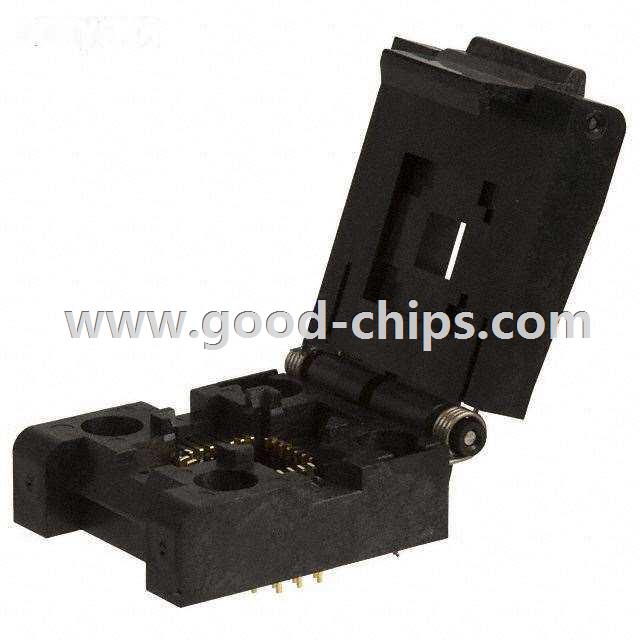

Description: | CONN SOCKET PLCC ZIF 28POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 28-536-11 Datasheet |
Internal Part Number | 898-28-536-11 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Connectors, Interconnects | ||
Family | Sockets for ICs, Transistors | |
Manufacturer | Aries Electronics | |
Series | 536 | |
Packaging | - | |
Part Status | Obsolete | |
Type | PLCC, ZIF (ZIP) | |
Number of Positions or Pins (Grid) | 28 (4 x 7) | |
Pitch - Mating | 0.050" (1.27mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 12µin (0.30µm) | |
Contact Material - Mating | - | |
Mounting Type | Through Hole | |
Features | Open Frame | |
Termination | - | |
Pitch - Post | - | |
Contact Finish - Post | - | |
Contact Finish Thickness - Post | - | |
Contact Material - Post | - | |
Housing Material | - | |
Operating Temperature | - | |
Termination Post Length | - | |
Material Flammability Rating | - | |
Current Rating | - | |
Contact Resistance | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 28-536-11 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
28-536-11 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of 28-536-11 is new and unused, you can buy 28-536-11 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 28-536-11.
