| Manufacturer Part Number: | 2745 |
|---|---|
| Manufacturer: | Adafruit Industries LLC |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9074 Pieces |
| Unit Price: | Quote by Email |
| Description: | LM3671 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2745 Datasheet |
| Internal Part Number | 898-2745 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |

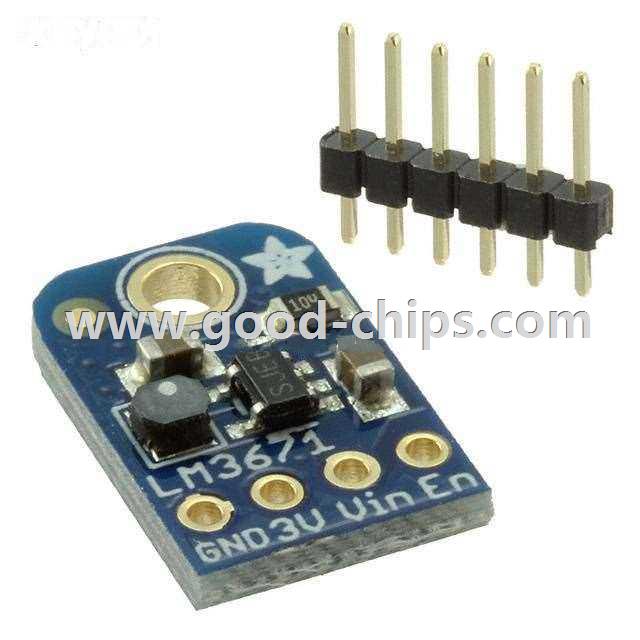

| Online Catalog | LM3671 Converter Breakout Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Adafruit Industries LLC | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 600mA | |
| Voltage - Input | 3 V ~ 5.5 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 2MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LM3671 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2745 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2745 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 2745 is new and unused, you can buy 2745 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2745.
