272300

272300
Manufacturer Part Number:272300
Manufacturer:
Product Category:Coaxial Connectors (RF) - Adapters
Available Quantity:9015 Pieces
Unit Price:Quote by Email

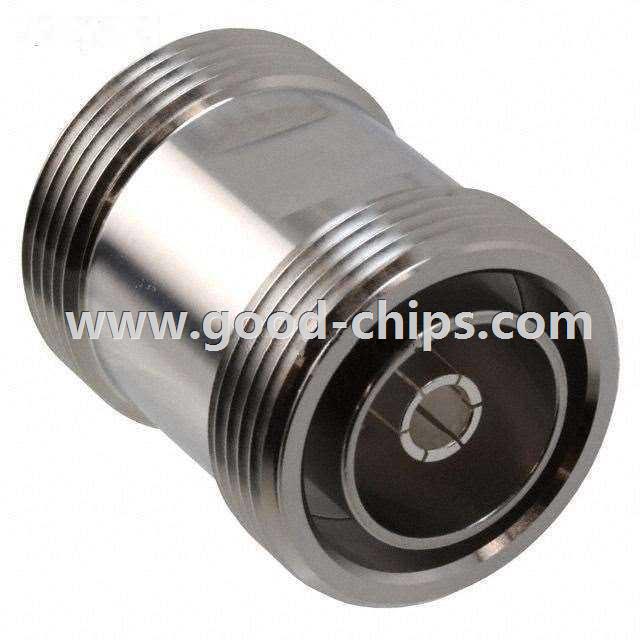

Description:Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohm
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 272300 Datasheet
272300´s Parameters
Internal Part Number898-272300
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesLow-PIM Products Overview
Featured ProductLow PIM Test Adapters
Online Catalog Coaxial, RF Adapters - Amphenol-RF Division
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF) - Adapters
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Adapter TypeJack to Jack
Adapter Series7/16 DIN to 7/16 DIN
Center GenderFemale to Female
Convert From (Adapter End)7/16 Jack, Female Socket
Convert To (Adapter End)7/16 Jack, Female Socket
Conversion TypeSame Series
Impedance50 Ohm
StyleStraight
Mounting TypeFree Hanging (In-Line)
Frequency - Max6GHz
Ingress ProtectionIP67 - Dust Tight, Waterproof
FeaturesLow PIM
Body MaterialBrass
Body FinishWhite Bronze
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Mating Cycles500
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part272300
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

272300 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 272300 is new and unused, you can buy 272300 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 272300.
