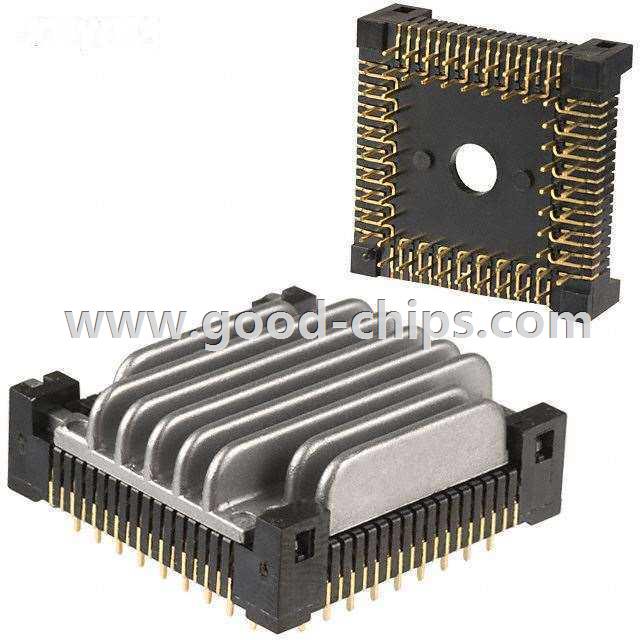

Manufacturer Part Number: | 268-5401-52-1102JH |
---|---|
Manufacturer: | 3M |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN SOCKET CLCC 68POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 268-5401-52-1102JH Datasheet |
Internal Part Number | 898-268-5401-52-1102JH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | 3M | |
Series | OEM | |
Packaging | Tray | |
Part Status | Discontinued | |
Type | CLCC | |
Number of Positions or Pins (Grid) | 68 (4 x 17) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole | |
Features | Closed Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Gold | |
Contact Finish Thickness - Post | 30µin (0.76µm) | |
Contact Material - Post | Beryllium Copper | |
Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | |
Operating Temperature | -55°C ~ 105°C | |
Termination Post Length | 0.100" (2.54mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 268-5401-52-1102JH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
268-5401-52-1102JH is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 268-5401-52-1102JH is new and unused, you can buy 268-5401-52-1102JH 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 268-5401-52-1102JH.
