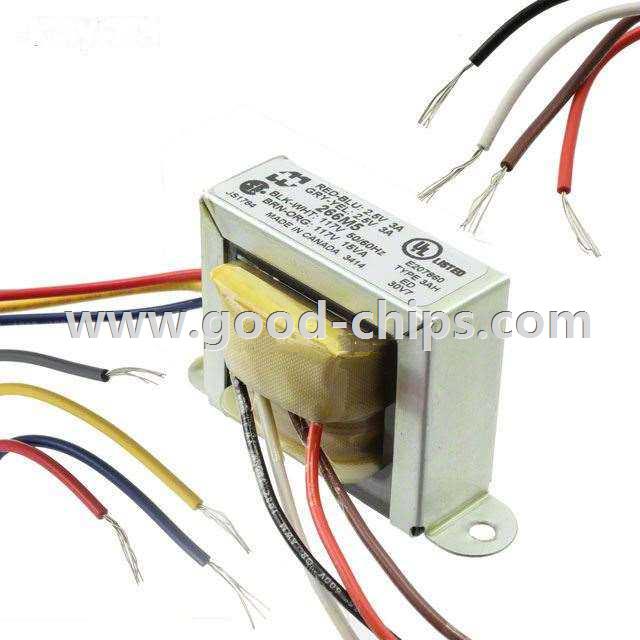

| Manufacturer Part Number: | 266M5 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR LAMINATED 15VA CHAS MOUNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 266M5 Datasheet |
| Internal Part Number | 898-266M5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 266 | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 117V, 234V | |
| Voltage - Secondary (Full Load) | Parallel 2.5V, Series 5V | |
| Current - Output (Max) | Parallel 6A, Series 3A | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 15 VA | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Size / Dimension | 82.55mm L x 52.32mm W | |
| Height - Seated (Max) | 50.80mm | |
| Voltage - Isolation | 2000Vrms | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 266M5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
266M5 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 266M5 is new and unused, you can buy 266M5 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 266M5.
