| Manufacturer Part Number: | 26-60-4110 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9372 Pieces |
| Unit Price: | Quote by Email |

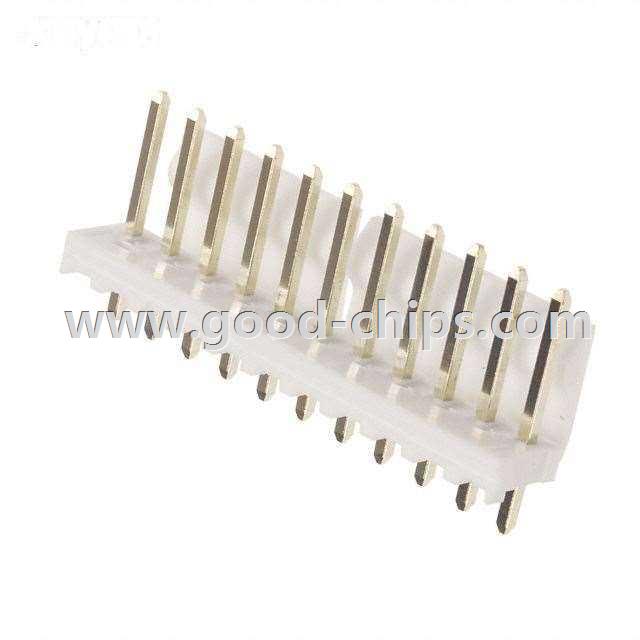

| Description: | 11 Positions Header, Unshrouded Connector 0.156" (3.96mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 26-60-4110 Datasheet |
| Internal Part Number | 898-26-60-4110 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Tin Whisker Formation Change 27/Jul/2011 | |
| Video File | Molex - Product of the Quarter - Mini-Fit® Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 26-60-4110 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 26-60-4110.stp 26-60-4110 .pdf | |
| PCN Design/Specification | Copper/Nickel Plating 01/Aug/2011 Reflow Matte Tin Plating 27/Jul/2011 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | KK® 41791 and 41792 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex Connector Corporation | |
| Series | KK® 41791 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 11 | |
| Number of Positions Loaded | All | |
| Pitch | 0.156" (3.96mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.450" (11.43mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 200µin (5.08µm) | |
| Color | Natural | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 26-60-4110 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
26-60-4110 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 26-60-4110 is new and unused, you can buy 26-60-4110 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 26-60-4110.
