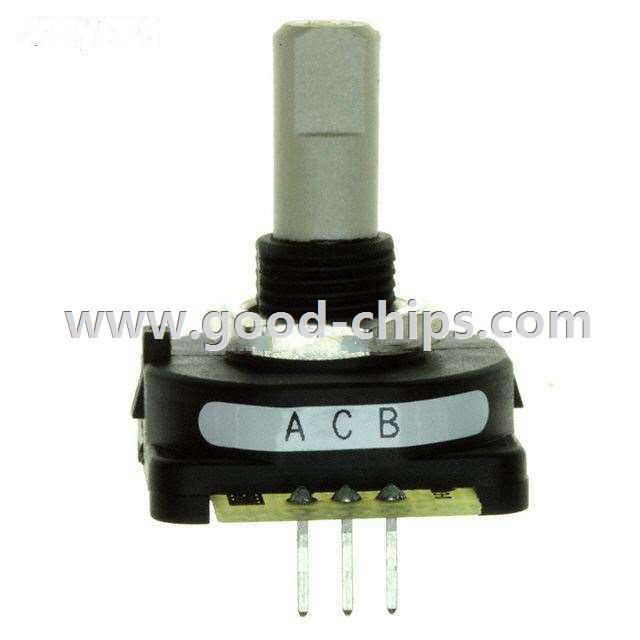

| Manufacturer Part Number: | 25LB30-Q |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER MECHANICAL 12POS PC MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 25LB30-Q Datasheet |
| Internal Part Number | 898-25LB30-Q | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Other | Multiple Devices Plating Material 30/Jan/2015 | |
| Online Catalog | 25L Series | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Grayhill Inc. | |
| Series | 25L | |
| Part Status | Active | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 12 | |
| Voltage - Supply | - | |
| Actuator Type | 1/4" Dia Flatted End | |
| Detent | Yes | |
| Built in Switch | No | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 100K | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 25LB30-Q | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
25LB30-Q is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 25LB30-Q is new and unused, you can buy 25LB30-Q Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 25LB30-Q.
