| Manufacturer Part Number: | 256-1292-00-0602J |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Sockets for ICs, Transistors |
| Available Quantity: | 9176 Pieces |
| Unit Price: | Quote by Email |

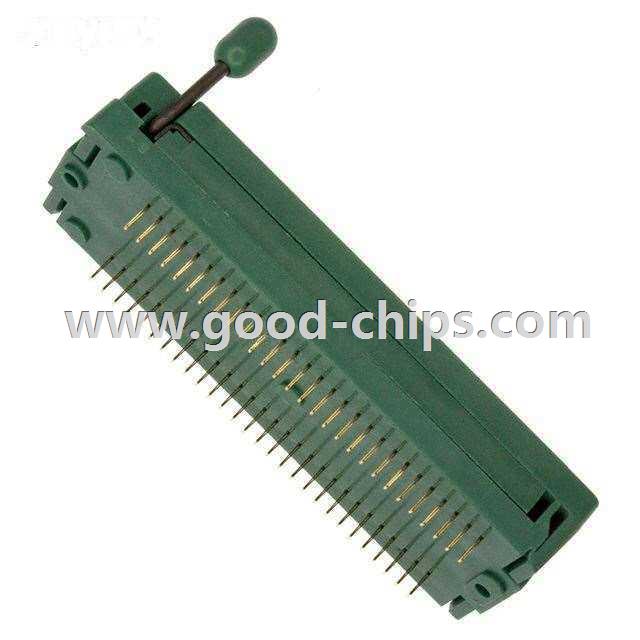

| Description: | CONN IC DIP SOCKET ZIF 56POS GLD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 256-1292-00-0602J Datasheet |
| Internal Part Number | 898-256-1292-00-0602J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Textool Sockets | |
| Featured Product | 3M™ ZIP DIP Sockets | |
| Online Catalog | Textool™ Series | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors | |
| Manufacturer | 3M | |
| Series | Textool™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing | |
| Number of Positions or Pins (Grid) | 56 (2 x 28) | |
| Pitch - Mating | 0.070" (1.78mm) | |
| Contact Finish - Mating | Gold | |
| Contact Finish Thickness - Mating | 30µin (0.76µm) | |
| Contact Material - Mating | Beryllium Copper | |
| Mounting Type | Connector | |
| Features | Closed Frame | |
| Termination | Press-Fit | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | Gold | |
| Contact Finish Thickness - Post | 30µin (0.76µm) | |
| Contact Material - Post | Beryllium Copper | |
| Housing Material | Polysulfone (PSU), Glass Filled | |
| Operating Temperature | -55°C ~ 125°C | |
| Termination Post Length | 0.110" (2.78mm) | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 1A | |
| Contact Resistance | 15 mOhm | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 256-1292-00-0602J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
256-1292-00-0602J is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 256-1292-00-0602J is new and unused, you can buy 256-1292-00-0602J 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 256-1292-00-0602J.
