Manufacturer Part Number: | 2551-2-00-80-00-00-07-0 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Terminals - Turret Connectors |
Available Quantity: | 14269 Pieces |
Unit Price: | Quote by Email |

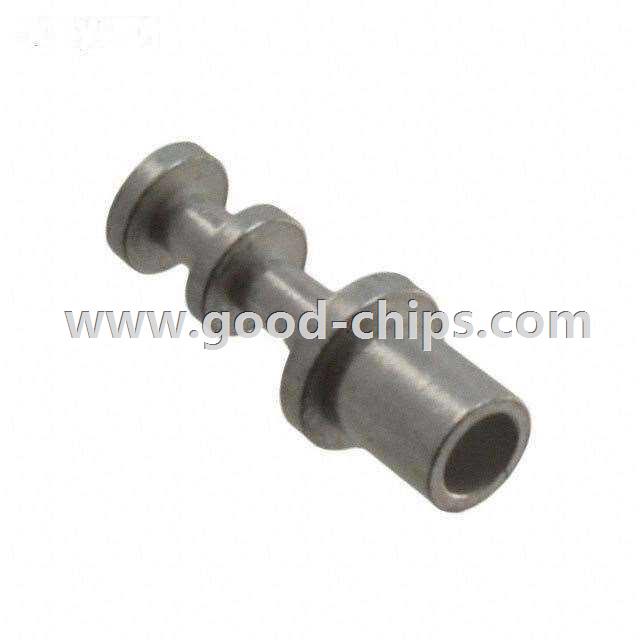

Description: | Terminal Turret Connector Single End 0.237" (6.02mm) Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2551-2-00-80-00-00-07-0 Datasheet |
Internal Part Number | 898-2551-2-00-80-00-00-07-0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Turrets | |
Category | Connectors, Interconnects | |
Family | Terminals - Turret Connectors | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 2551 | |
Part Status | Active | |
Terminal Type | Single End | |
Number of Turrets | Double | |
Length - Above Board | 0.237" (6.02mm) | |
Length - Below Flange | 0.105" (2.67mm) | |
Length - Overall | 0.342" (8.69mm) | |
Mounting Type | Through Hole | |
Termination | Swage | |
Flange Diameter | 0.125" (3.18mm) | |
Diameter - Turret Head | 0.094" (2.39mm) | |
Staking Side OD | 0.090" (2.29mm) | |
Staking Side ID | 0.064" (1.63mm) | |
Mounting Hole Diameter | 0.094" (2.39mm) | |
Board Thickness | 0.062" (1.57mm) | |
Contact Material | Brass Alloy | |
Contact Finish | Tin | |
Contact Finish Thickness | 200µin (5.08µm) | |
Insulation | Non-Insulated | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2551-2-00-80-00-00-07-0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2551-2-00-80-00-00-07-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 2551-2-00-80-00-00-07-0 is new and unused, you can buy 2551-2-00-80-00-00-07-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2551-2-00-80-00-00-07-0.
