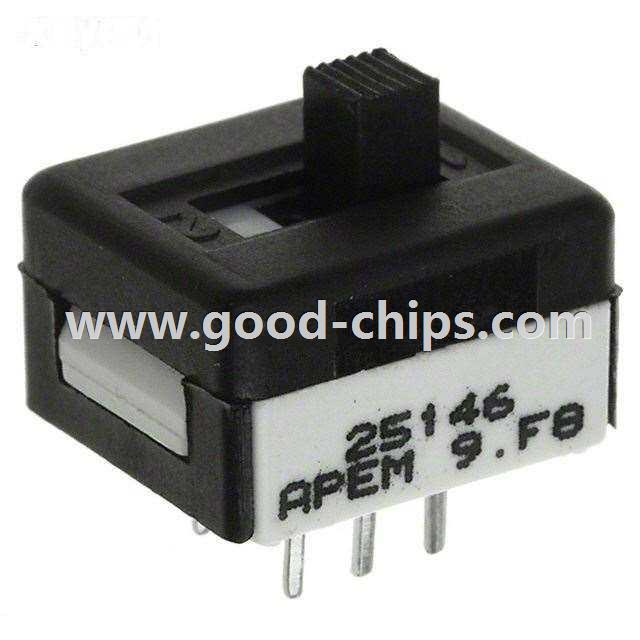

| Manufacturer Part Number: | 25146NAH |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Slide Switches |
| Available Quantity: | 10251 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch DPDT Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 25146NAH Datasheet |
| Internal Part Number | 898-25146NAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 25000N | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | Apem Inc. | |
| Series | 25000N | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Contact Timing | Not Specified | |
| Switch Function | On-On | |
| Current Rating | 4A (AC), 1A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Standard | |
| Actuator Length | 2.80mm | |
| Contact Material | Silver (Ag) | |
| Contact Finish | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
| Switch Travel | 4.00mm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 20,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 25146NAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
25146NAH is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of 25146NAH is new and unused, you can buy 25146NAH Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 25146NAH.
