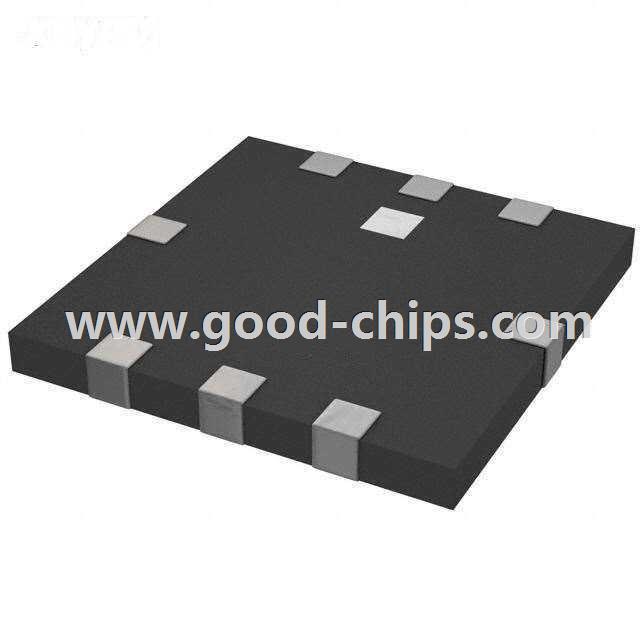

| Manufacturer Part Number: | 2500AT52M3555E |
|---|---|
| Manufacturer: | Johanson Technology Inc. |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.5GHz, 3.6GHz, 5.5GHz WiMax™ Chip RF Antenna 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.9GHz, 5.15GHz ~ 5.875GHz 2dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2500AT52M3555E Datasheet |
| Internal Part Number | 898-2500AT52M3555E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF Ceramic Chip Antennas | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Johanson Technology Inc. | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Frequency Group | Wide Band | |
| Frequency (Center/Band) | 2.5GHz, 3.6GHz, 5.5GHz | |
| Frequency Range | 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.9GHz, 5.15GHz ~ 5.875GHz | |
| Antenna Type | Chip | |
| Number of Bands | 3 | |
| VSWR | - | |
| Return Loss | -8.5dB, -9.5dB | |
| Gain | 2dBi | |
| Power - Max | 5W | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.037" (0.95mm) | |
| Applications | WiMax™ | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2500AT52M3555E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2500AT52M3555E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 2500AT52M3555E is new and unused, you can buy 2500AT52M3555E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2500AT52M3555E.
