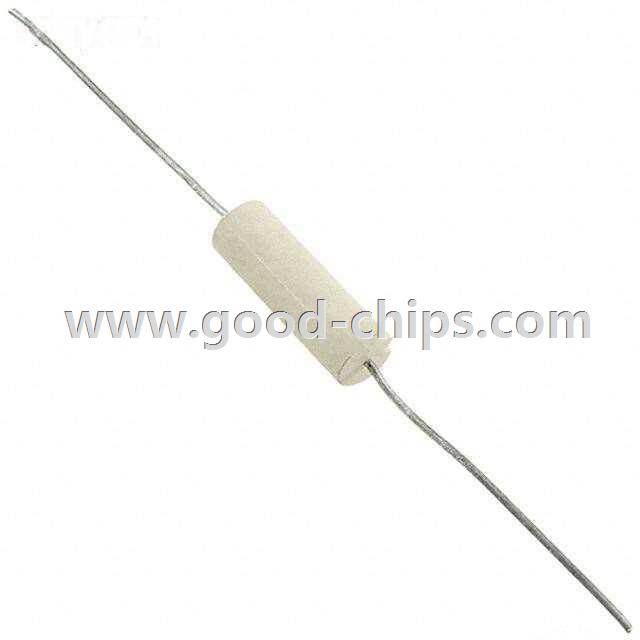

| Manufacturer Part Number: | 2500-76J |
|---|---|
| Manufacturer: | API Delevan Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10mH Unshielded Molded Inductor 48mA 72 Ohm Max Axial |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2500-76J Datasheet |
| Internal Part Number | 898-2500-76J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Military, MIL-PRF-M15305, MS90541 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | API Delevan Inc. | |
| Series | Military, MIL-PRF-M15305, MS90541 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Molded | |
| Material - Core | Iron | |
| Inductance | 10mH | |
| Tolerance | ±5% | |
| Current Rating | 48mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 72 Ohm Max | |
| Q @ Freq | 80 @ 250kHz | |
| Frequency - Self Resonant | 950kHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Frequency - Test | 250kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Axial | |
| Size / Dimension | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2500-76J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2500-76J is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 2500-76J is new and unused, you can buy 2500-76J API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2500-76J.
