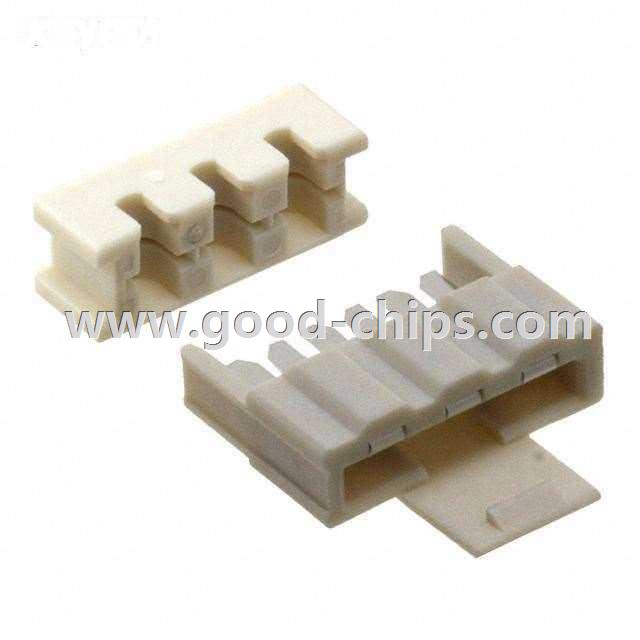

| Manufacturer Part Number: | 249159003132196 |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Solid State Lighting Connectors |
| Available Quantity: | 13210 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSL Connector 3 Position Socket Board to Cable/Wire 0.118" (3.00mm) IDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 249159003132196 Datasheet |
| Internal Part Number | 898-249159003132196 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | 9159 Series | |
| Category | Connectors, Interconnects | |
| Family | Solid State Lighting Connectors | |
| Manufacturer | AVX Corporation | |
| Series | 9159 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Style | Board to Cable/Wire | |
| Connector Type | Socket | |
| Number of Positions | 3 | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | IDC | |
| Pitch | 0.118" (3.00mm) | |
| Fastening Type | Latch Lock | |
| Features | - | |
| Housing Color | White | |
| Wire Gauge | 24 AWG | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | |
| Operating Temperature | -40°C ~ 125°C | |
| Voltage Rating | 125V | |
| Current Rating | 5A per Contact | |
| Ingress Protection | - | |
| Mating Cycles | 10 | |
| Standard Package | 700 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 249159003132196 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
249159003132196 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of 249159003132196 is new and unused, you can buy 249159003132196 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 249159003132196.
