245802016002829+

245802016002829+

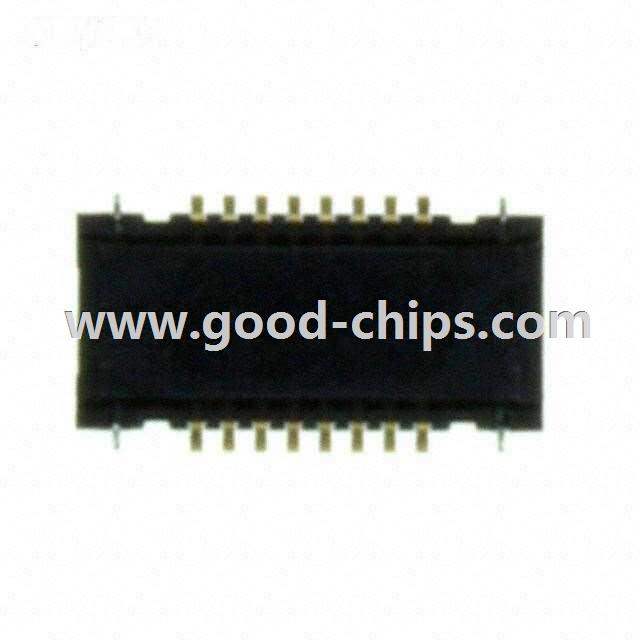

Manufacturer Part Number:245802016002829+
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 245802016002829+ Datasheet
245802016002829+´s Parameters
Internal Part Number898-245802016002829+
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerAVX Corp/Kyocera Corp
Series5802, Kyocera
PackagingCut Tape (CT)
Part StatusObsolete
Connector TypeReceptacle, Center Strip Contacts
Number of Positions16
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide, Solder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights0.8mm
Height Above Board0.030" (0.75mm)
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part245802016002829+
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

245802016002829+ is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of 245802016002829+ is new and unused, you can buy 245802016002829+ AVX Corp/Kyocera Corp with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 245802016002829+.
