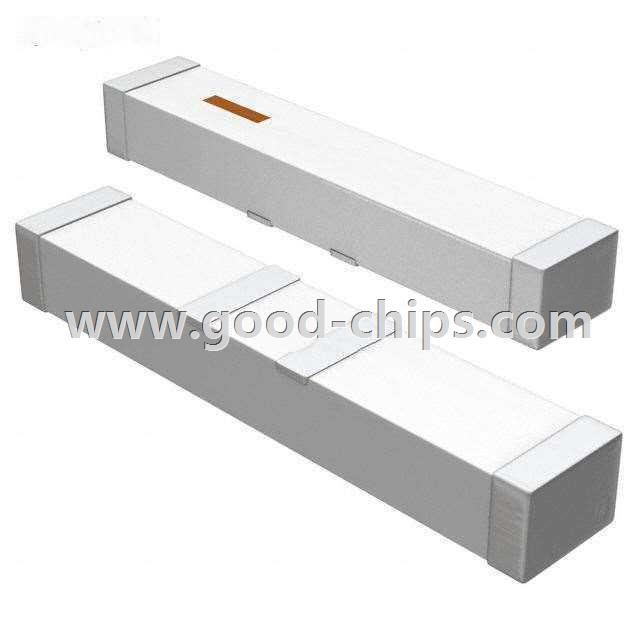

| Manufacturer Part Number: | 2450AD46A5400E |
|---|---|
| Manufacturer: | Johanson Technology Inc. |
| Product Category: | RF Antennas |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz, 5.4GHz Chip RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 1dBi, -1.5dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2450AD46A5400E Datasheet |
| Internal Part Number | 898-2450AD46A5400E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF Ceramic Chip Antennas | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Johanson Technology Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.4GHz | |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | |
| Antenna Type | Chip | |
| Number of Bands | 2 | |
| VSWR | - | |
| Return Loss | -8.5dB | |
| Gain | 1dBi, -1.5dBi | |
| Power - Max | 3W | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.047" (1.20mm) | |
| Applications | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2450AD46A5400E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2450AD46A5400E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 2450AD46A5400E is new and unused, you can buy 2450AD46A5400E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2450AD46A5400E.
