242A26870X

242A26870X
Manufacturer Part Number:242A26870X
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9028 Pieces
Unit Price:Quote by Email

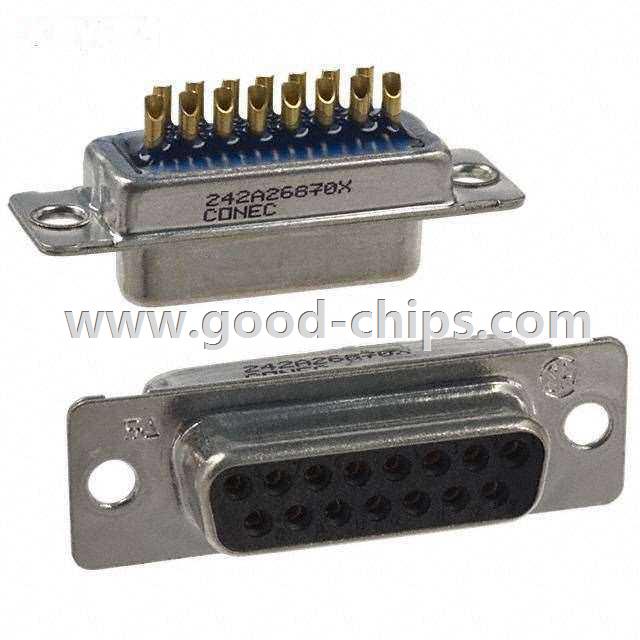

Description:15 Position D-Sub Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 242A26870X Datasheet
242A26870X´s Parameters
Internal Part Number898-242A26870X
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS/Reach Cert of Compliance
Online Catalog 242A Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerConec
Series242A
PackagingTray
Part StatusActive
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions15
Number of Rows2
Shell Size, Connector Layout2 (DA, A)
Contact TypeSignal
Mounting TypeFree Hanging (In-Line)
Flange FeatureHousing/Shell (Unthreaded)
TerminationSolder Cup
FeaturesFilter
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish Thickness8µin (0.20µm)
Ingress ProtectionIP20
Operating Temperature-25°C ~ 105°C
Voltage Rating100V
Current Rating5A
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColorBlack
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement Part242A26870X
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

242A26870X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 242A26870X is new and unused, you can buy 242A26870X Conec with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 242A26870X.
