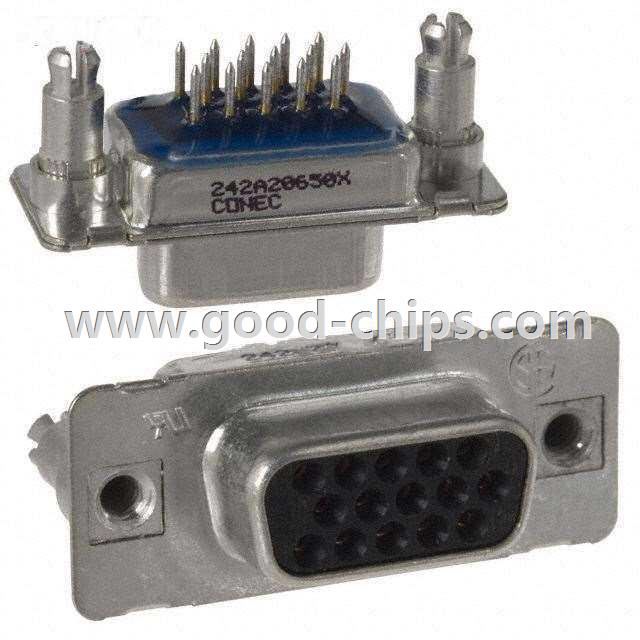

Manufacturer Part Number: | 242A20650X |
---|---|
Manufacturer: | Conec |
Product Category: | D-Sub Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Through Hole Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 242A20650X Datasheet |
Internal Part Number | 898-242A20650X | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS/Reach Cert of Compliance | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Conec | |
Series | 242A | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub, High Density | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 15 | |
Number of Rows | 3 | |
Shell Size, Connector Layout | 1 (DE, E) High Density | |
Contact Type | Signal | |
Mounting Type | Through Hole | |
Flange Feature | Board Side (4-40) | |
Termination | Solder | |
Features | Board Lock, Filter | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 8µin (0.20µm) | |
Ingress Protection | - | |
Operating Temperature | -25°C ~ 105°C | |
Voltage Rating | 100V | |
Current Rating | 5A | |
Housing Material | Polyester, Glass Filled | |
Color | Black | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 242A20650X | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
242A20650X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 242A20650X is new and unused, you can buy 242A20650X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 242A20650X.
