242224

242224
Manufacturer Part Number:242224
Manufacturer:
Product Category:Coaxial Connectors (RF) - Adapters
Available Quantity:9110 Pieces
Unit Price:Quote by Email

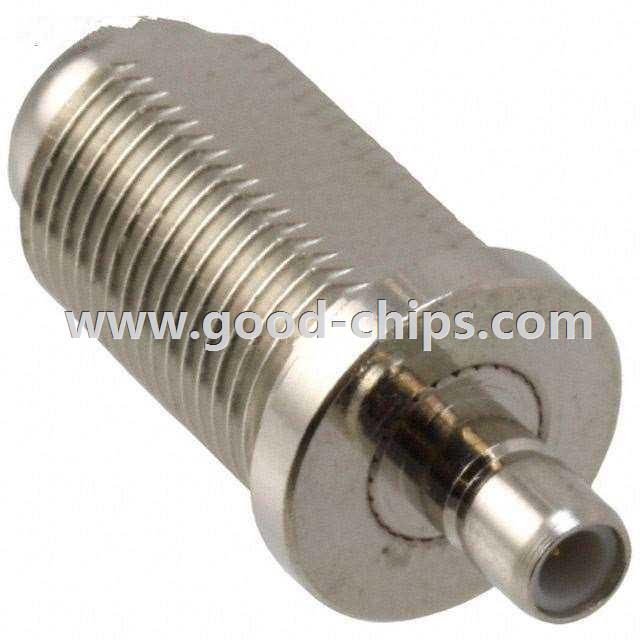

Description:Adapter Coaxial Connector SMB Jack, Male Pin To F Jack, Female Socket 50 Ohm
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 242224 Datasheet
242224´s Parameters
Internal Part Number898-242224
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Coaxial, RF Adapters - Amphenol-RF Division
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF) - Adapters
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Adapter TypeJack to Jack
Adapter SeriesSMB to F
Center GenderFemale to Male
Convert From (Adapter End)SMB Jack, Male Pin
Convert To (Adapter End)F Jack, Female Socket
Conversion TypeBetween Series
Impedance50 Ohm
StyleStraight
Mounting TypeFree Hanging (In-Line)
Frequency - Max2GHz
Ingress Protection-
Features-
Body MaterialBrass
Body FinishNickel
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Mating Cycles-
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part242224
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

242224 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 242224 is new and unused, you can buy 242224 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 242224.
