Manufacturer Part Number: | 242202 |
---|---|
Manufacturer: | Amphenol-RF Division |
Product Category: | Coaxial Connectors (RF) - Adapters |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

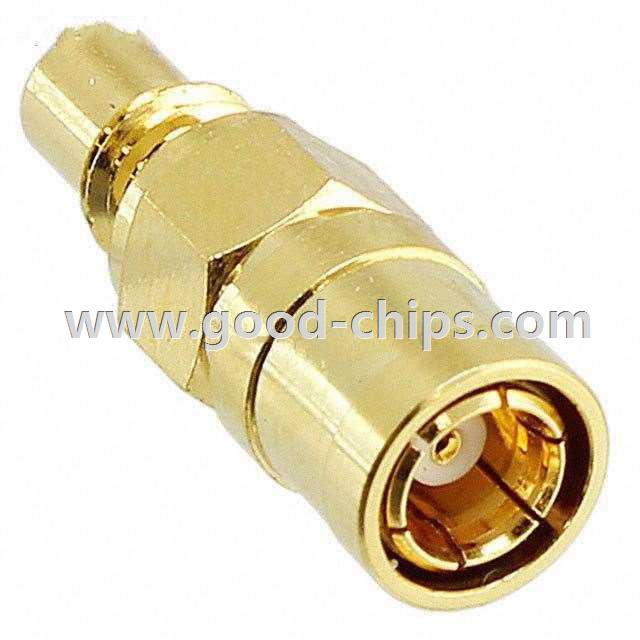

Description: | Adapter Coaxial Connector SMB Plug, Female Socket To SMC Jack, Male Pin 50 Ohm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 242202 Datasheet |
Internal Part Number | 898-242202 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Coaxial, RF Adapters - Amphenol-RF Division | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) - Adapters | |
Manufacturer | Amphenol-RF Division | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Adapter Type | Plug to Jack | |
Adapter Series | SMB to SMC | |
Center Gender | Female to Male | |
Convert From (Adapter End) | SMB Plug, Female Socket | |
Convert To (Adapter End) | SMC Jack, Male Pin | |
Conversion Type | Between Series | |
Impedance | 50 Ohm | |
Style | Straight | |
Mounting Type | Free Hanging (In-Line) | |
Frequency - Max | 4GHz | |
Ingress Protection | - | |
Features | - | |
Body Material | Brass | |
Body Finish | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Mating Cycles | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 242202 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
242202 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 242202 is new and unused, you can buy 242202 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 242202.
