241A16080X

241A16080X
Manufacturer Part Number:241A16080X
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9220 Pieces
Unit Price:Quote by Email

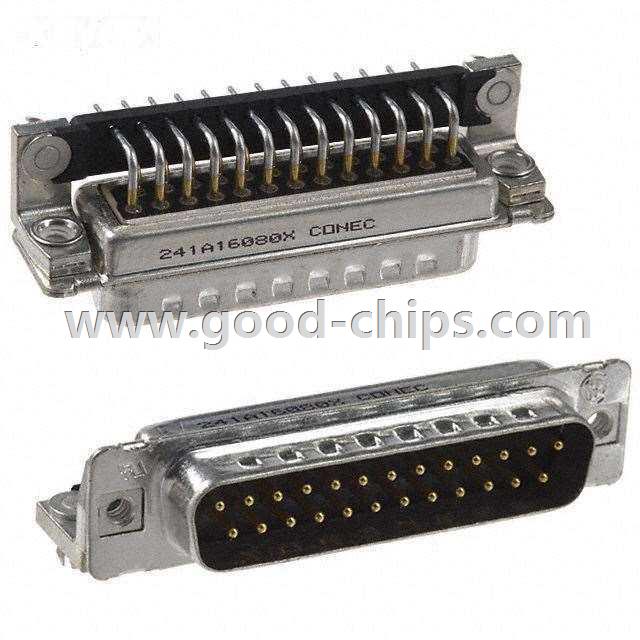

Description:25 Position D-Sub Plug, Male Pins Connector, Board Edge, Through Hole, Right Angle Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 241A16080X Datasheet
241A16080X´s Parameters
Internal Part Number898-241A16080X
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS/Reach Cert of Compliance
Online Catalog 241A Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerConec
Series241A
PackagingTray
Part StatusActive
Connector StyleD-Sub
Connector TypePlug, Male Pins
Number of Positions25
Number of Rows2
Shell Size, Connector Layout3 (DB, B)
Contact TypeSignal
Mounting TypeBoard Edge, Through Hole, Right Angle
Flange FeatureHousing/Shell (4-40)
TerminationSolder
FeaturesBoard Lock, Filter, Grounding Indents
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish Thickness8µin (0.20µm)
Ingress ProtectionIP20
Operating Temperature-25°C ~ 105°C
Voltage Rating100V
Current Rating7.5A
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColorBlack
Standard Package 30
Weight0.001 KG
ApplicationEmail for details
Replacement Part241A16080X
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

241A16080X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 241A16080X is new and unused, you can buy 241A16080X Conec with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 241A16080X.
